I am building a AlfaMendel 3D printer (edited : The original question named it to be Prusa Mendel I2). I printed the extruder drive using PLA material from the STL available in the package but I'm not able to insert the hobbed drive as well as the filament in it. The dimensions of hobbed drive is correct.

Is the problem related to shrinking of print material while printing the extruder drive or something else.

I have included few pics of the extruder drive and hobbed drive.

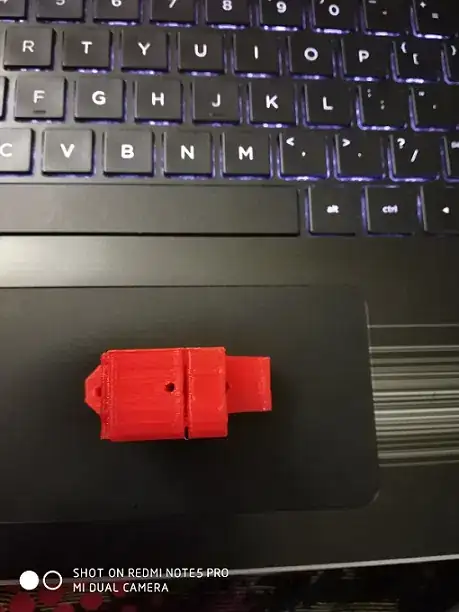

Filament hole in extruder drive

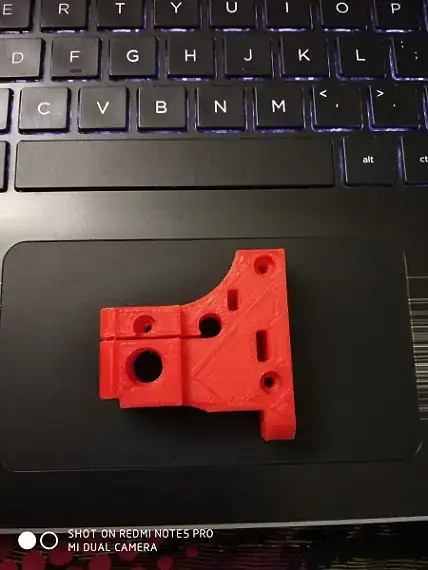

Extruder drive

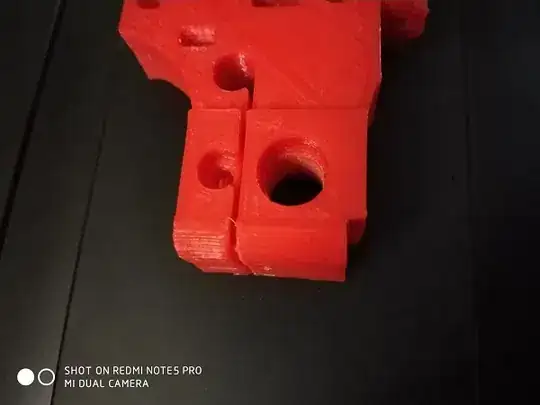

Close up of extruder drive

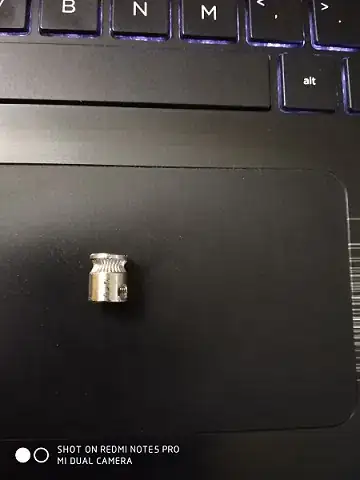

Hobbed Drive

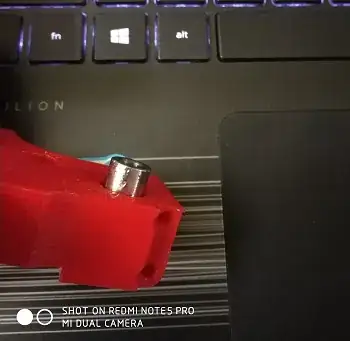

This image shows the maximum possible insertion of hobbed drive in the extruder drive.

Trying to insert the hobbed drive in the extruder drive

Greenonline
  • 5,831
  • 7
  • 30
  • 60
MSD
  • 43
  • 6
  • 1
    The MK7 and MK8 hobbed extruder gears have different diameters. One is 12 mm and the other is 9 mm respectively, so the question is what diameter is your hobbed gear? – 0scar Jun 19 '18 at 13:10
  • Its MK8 with 9mm diameter – MSD Jun 19 '18 at 13:15
  • 1
    You need to add more information; e.g. what material you printed, a photo with the gear (tried to fit) in the printed part, measured dimensions, STL model dimensions. – 0scar Jun 19 '18 at 13:19
  • I have used PLA to print the part, as much I remember the measured diameter of the hole in extruder drive was 7.9 - 8 mm (actually I don't have a Vernier Calliper at present) and I added one more pic in the edited version – MSD Jun 19 '18 at 13:35

1 Answers1

4

Your parts are not in the Prusa Mendel i2 as found here or here.

Also note, quote:

Parts included in Github repository have the wrong dimensions for the nut traps! Download the correct version from [Thingiverse Greg's Hinged Accesible Extruder]

Are you sure you have the correct parts for the original Prusa Mendel i2? Maybe you have a different version? The original extruder mount uses an M8 hobbed bolt, not an MK8 hobbed extruder gear. The first is 8 mm in diameter, the latter is 9 mm in diameter.

Edit: After you updated your post to hint to the correct printer, it appears that my answer still holds. You did use the incorrect extruder gear. The 9 mm gear doesn't fit in the extruder part as it requires an 8 mm diameter extruder gear.

It might be difficult to find a 8 mm hobbed gear with a 3 mm shaft diameter, they are usually 5 mm (as in the stepper shaft diameter) or 8 mm (as in the diameter of 8 mm bolts that are frequently used for extruder setups). You could redesign the part (load STL in a 3D CAD program and make the changes). By the way, PLA should not shrink so much. As can be seen in the photo's, it looks like your current printer does not print very accurately, that may also contribute.

0scar
  • 32,029
  • 10
  • 59
  • 135
  • Sorry for incorrect info. Actually the printer is not entirely Reprap Prusa Mendel but it is **AlfaMendel AM1** which is similar to Prusa Mendel I2. The link for its manual is [link](https://drive.google.com/open?id=1rcsy922SaEuJyy8FaSfNMyOS690cT-BJ). You may check page no. 126 of the manual for its extruder drive. Actually I didnot correctly read it, the printer requires a 8mm M3 hobbed drive, not the MK8 which I have. Buy the way, thank you for the answer :) – MSD Jun 20 '18 at 18:09
  • Can I print a hobbed drive using PLA, instead of purchasing a metallic one ? – MSD Jun 20 '18 at 18:10
  • @MSD No you cannot print that to use it functionally. – 0scar Jun 20 '18 at 18:18
  • OK :) Also, I am not able to insert the PLA filament into the extruder drive (via the hole in the very first pic), I think it has shrinked. What should I use to drill it to make it proper or some other way to make it correct ? – MSD Jun 20 '18 at 18:25
