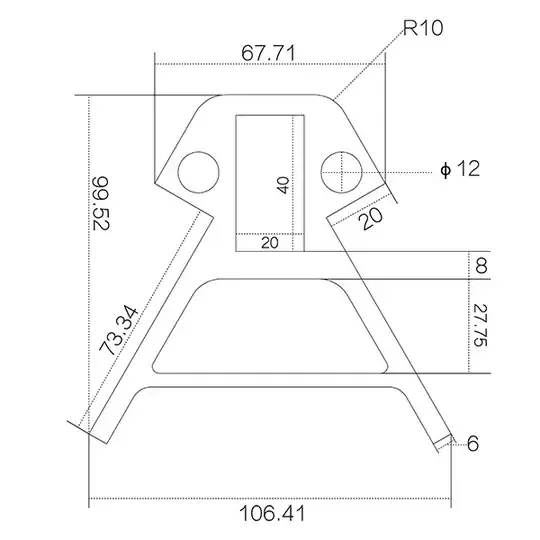

I want to draw kossel delta corner in fusion 360 for 2040 aluminium extrusion like on picture below, but cant find a way to actualy start, I draw 3 side polygon and 20x40mm rectangle but cant go from there, so do you have any suggestion?

enter image description here

Slobodan Vidovic
  • 233
  • 1
  • 2
  • 5

2 Answers2

2

I attempted to create your drawing but discovered that an important set of parameters is missing. You have to have either the intersection point of the legs (73.34) from each side or the angle between the legs (73.34) and the base (106.41) to create construction lines. Once you have either of those items, you can construct the remainder of the design using offsets, radii, etc.

More accurately, one other missing item that would be required to complete this design is the placement of the holes at the top (12) relative to some other feature of the design.

Having taken on the challenge of your drawing, I've found that it is necessary to surrender. The angles or the intersection point are critical and without them, no solution comes to my alleged mind.

I have also discovered one additional datum missing. The distance of the bottom truss and the thickness of this truss would be required to provide a more certain solution.

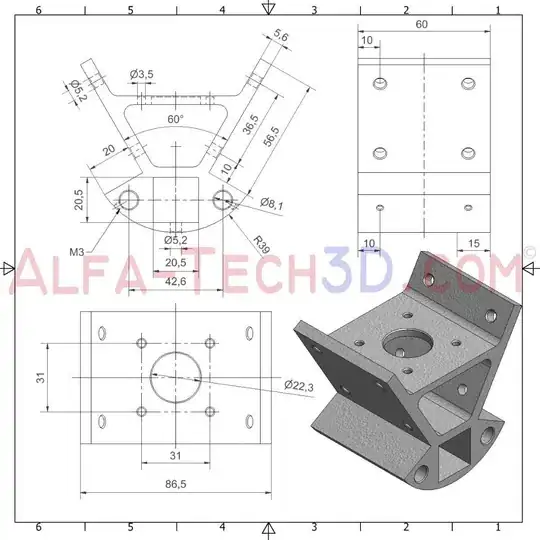

One the flip side, I've found alpha-tech3d.com which appears to include similar parts, rotated 180° with what appears to have all of the necessary data. image of one part

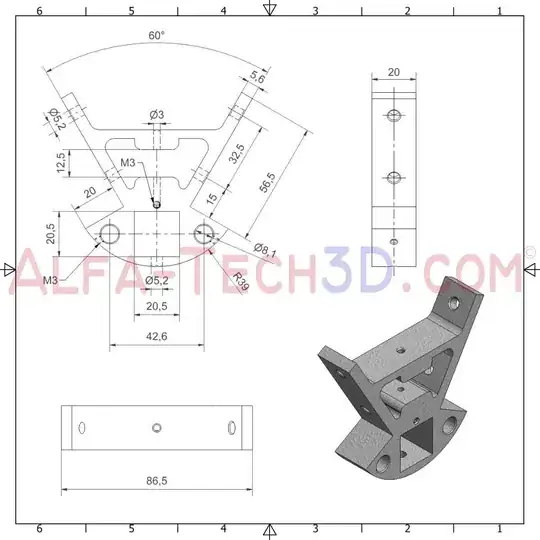

image of another part

fred_dot_u
  • 10,532
  • 1
  • 10
  • 24
  • I'm really surprised that you attempted drawing this and big thank you for doing that. After reading your post its clear that important measurements is missing so I need to find something else. Your blueprint drawings are for 2020 alu. ext. I'm looking for 2040 but still they I interesting and same principles and distances can be apply to 2040 drawings thanks for sharing and cheers – Slobodan Vidovic Oct 17 '17 at 22:32
  • 1
    One (now-obvious) aspect arose during my research. These extrusions are the apexes of an equilateral triangle. Perhaps my high school days are too far behind me, but one can determine the angle in your first image will be 60 degrees. That leaves very little to chance. The 12 mm holes are 8 mm in the drawings from alfa-tech. The bottom web in your drawing is still up in the air, but your suggestion that you can read some from alfa-tech's stuff and apply it to your drawing is quite sound. Good luck. – fred_dot_u Oct 17 '17 at 23:25
1

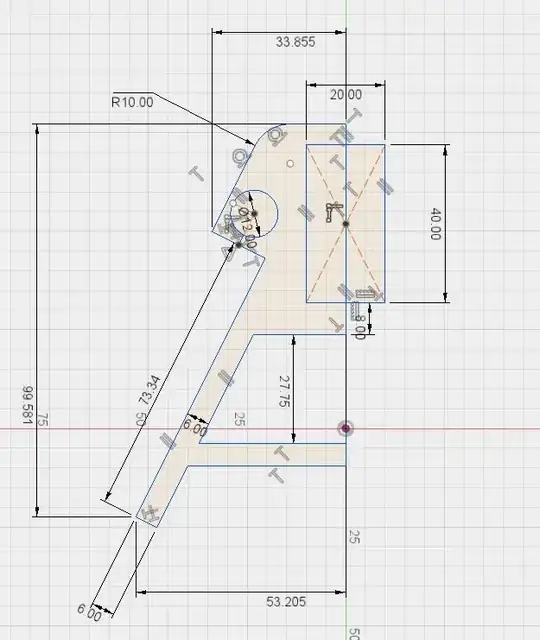

I love me a challenge so I just hacked this together: (a half waiting for mirror) enter image description here As for strategy, I simply used the line tool to do a basic shape and then went to town with constraints and dimensions to see what I end up with. Can't fail.

Clearly, you're missing information to constraint the sketch fully, but if you have the extrusions and the machine, you could just print a few tests to guess the missing values.

(Like precise position of the circles, of the 20x40 rectangle...)

You can download/ view my fusion model here: http://a360.co/2gJsdxB

Good luck.
