I have designed a model with the dimensions 215x125x12 mm. According to my printer settings, the printing area of the Ultimaker 3 is 233x215x200 mm. But I can not get the model to fit. Why is that?

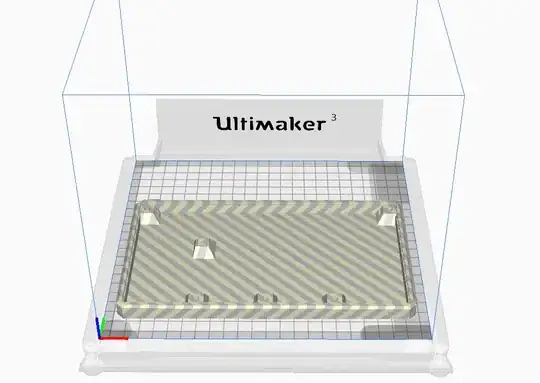

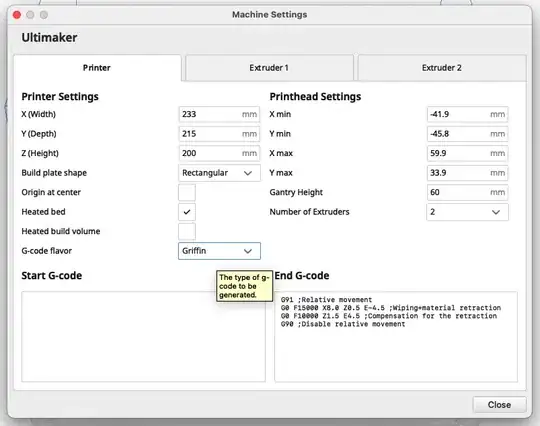

Here are some screenshots:

Ultimaker image 00

Ultimaker image 01

Greenonline
  • 5,831
  • 7
  • 30
  • 60
F_Schmidt
  • 121
  • 3

1 Answers1

5

Yes that happens! It finds its source in various possible reasons.

  • The print bed is not square! There are cutouts caused by the print head;
  • The Ultimaker 3 has 2 nozzles, when you have 2 active, the effective print bed is smaller than with 1 nozzle active;
  • Using a brim or a skirt also makes the effective print area smaller.

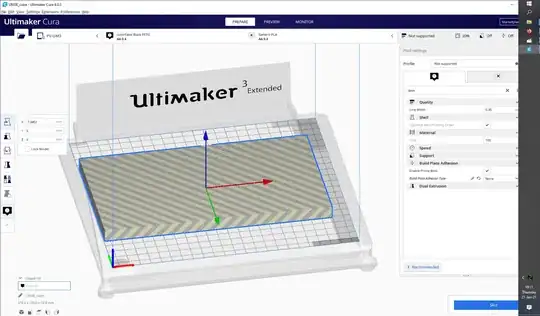

In re-creating your example, the settings in your projects are not correct (but even if done properly, you will not be able to print it flat on the bed). Take a look at the image below, as can be seen your example still has a brim/skirt reservation, be sure to disable the second extruder (as shown by a cross X before "Generic PLA" at the top).

enter image description here

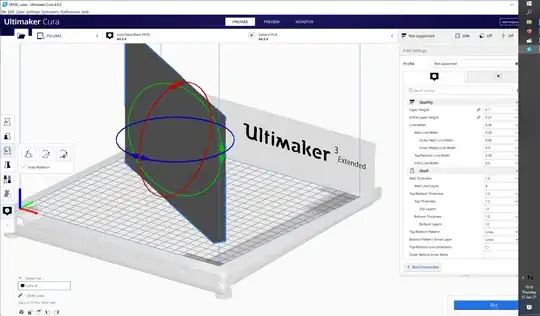

The only solution to print this on this machine is to print it upright:

enter image description here

0scar
  • 32,029
  • 10
  • 59
  • 135
  • Brim and skirt are disabled, only nozzle 1 is active, the other slot is empty. Is 215 mm too big? – F_Schmidt Jan 17 '21 at 11:06
  • @F_Schmidt Are you sure, your image clearly differs from added images in the answer. E.g. have you disabled the second extruder. – 0scar Jan 21 '21 at 09:50
  • I created the image before turning off. After that I was able to fit a model with width 207mm – F_Schmidt Jan 21 '21 at 09:51
