My calibration at my printer is okay. When I try to move 10 mm, it's exactly 10 mm.

But I want to know what is my precision for Z-axis.

(not posting the link of the product maybe it's not okay for the platform)

Spec for leadscrew:

  • Lead screw diameter: 8 mm
  • Screw pitch: 2 mm
  • Lead of thread: 8 mm

calculator page

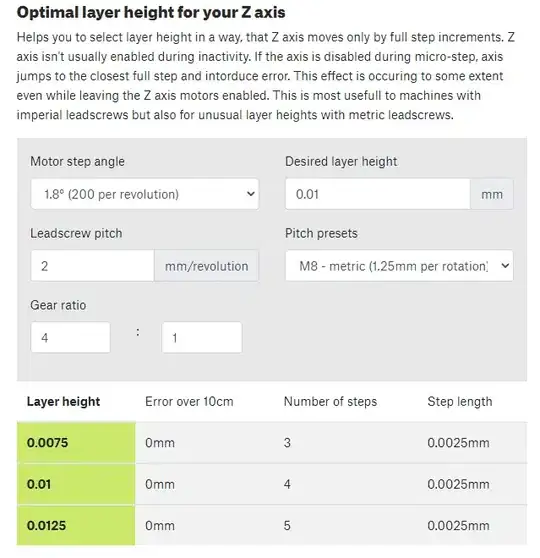

My question; is my gear ratio 4:1 or 1:4? It's giving different results.

0scar
  • 32,029
  • 10
  • 59
  • 135
ahmetertem
  • 103
  • 5
  • 1
    [This answer](/a/10597/) gives insight in leadscrews. – 0scar May 31 '20 at 22:29
  • 1
    In my experience, with decent stepper drivers (e.g. A4988), sticking to full steps for Z axis does not seem to be important (doesn't seem to make any difference to print quality). – R.. GitHub STOP HELPING ICE Jun 01 '20 at 03:11
  • My question is not just for 3D printers, I'm thinking about modifying to high precision CNC :) Thanks in advance – ahmetertem Jun 01 '20 at 03:14
  • 1
    In short: It's 1:1, and your "pitch" for that calculator is 8 mm. Pitch and lead are frequently confused. – towe Jun 02 '20 at 11:08

1 Answers1

1

Your lead screw nut advances 8 mm every complete rotation of 200 full steps, so a single full step would change the height by 8/200 = 0.04 mm. This implies you need to set the layer height a multiple of 0.04 mm.

The gear ratio of 4:1 (a reduction) is required to get to your desired 0.01 mm layer height, but that is a very uncommon and a too small layer height to use.
