Introduction

In this guide, you will remove the internal hardware of the device to replace the back cover.

  1. xdNMXdvXX6LwTaVg
    • First, separate the halves by wedging it open with the wedger.

  2. W6lvE1KBfklrUPTR
    • Next, carefully remove the display ribbons from the motherboard by using tweezers.

  3. SxNSZ32ZrTLRw5qq
    • Then, remove the battery from the back cover by using the wedging tool.

    • You might have some difficulty removing due to glue holding the battery in place.

  4. pZhINXBVStqHuWbk
    pZhINXBVStqHuWbk
    cQifIMhTnckwDdau
    • Now pop off the speakers with the wedger.

    • Remove 3 Philips screws from the motherboard and then remove the motherboard.

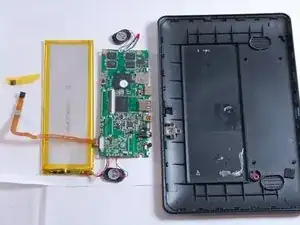

  5. yxFRY3TiAhxWklVe
    • Lastly, make sure you have removed all of the excess pieces from the back cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
