Steam Deck View Button Replacement

Written By: Carsten Frauenheim

Comments: 41

Difficulty

Moderate

Steps

Time Required

1 - 2 hours

Introduction

Use this guide to replace the view button and its membrane in your Steam Deck.

Before you begin, completely power down and unplug all cables from your Steam Deck. Remember to follow general electrostatic discharge (ESD) safety procedures while repairing the device.

Tools

Step 1

To minimize risk of damage, turn on your Steam Deck and allow the battery to discharge below 25% before starting your repairs. A charged lithium-ion battery can be very dangerous if accidentally punctured.
Before starting this guide, power down your Steam Deck and unplug any cables.
As an extra precaution, Valve recommends putting your Steam Deck into battery storage mode within the BIOS before starting any internal repairs. Read how to do that here.
If you have a microSD card installed, make sure to remove it before opening the Steam Deck.
Use a Phillips driver to remove the eight screws securing the back cover:
Four 9.5 mm screws
Four 5.8 mm screws
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your Steam Deck.

there should be a picture of the SD card slot at the start of every Steam Deck teardown. i know the note is there but i generally use the pictures to guide me and forgetting to remove the SD card is a very critical step

Nathan Barrow -

What is the the #1 philips used for? Only the #0 is mentioned in the instructions.

Christopher Martin -

I wish they would specify which size to use for which screws.

Mark D -

I found it easiest to use a PH1 for the red screws, and PH0 for the rest (including the internals.)

Chris Clawson -

Be careful you can strip the screws take your time

I use PH00 bit

jaybush74 -

I used the PH1 bit for this. You can use smaller bits but ideally there should be no play of the bit in the screw head.

Charles Semple -

are there playstation replacements (circle,square,cross,triangle)

Deór -

I used the ifixit tools and used the 00 size for the screws on the back.

Luis B - 10/01/23

Step 2

Insert an opening pick into the thin gap between the back cover and the front shell, along the edge of the right grip.
Pry up on the back cover to release it from the locking clips.

I found it easiest to start this process at the top of the device near the fan exit.

Peter Lindberg -

second that and inserting the pick in the bottom middle and sliding the pick to each side

Sub -

I also found the top near the fan exit to be easier

Travis Patton -

Thank you for this tip, it definitely was easy starting at the top instead of by the bumper/triggers. After I opened the top I did the bottom and then it was way easier to gently open the sides. be very careful and go slowly to make sure that none of the clips are damaged

Luis B -

same; i pried from the top of the screen area. I was unable to find an opening on the side

Dennis Wu -

I also started from the middle of the deck and worked my way out since I couldn't get a grip with the pick on the deck's side grips. Since this is a common step for pretty much all guides for opening the deck I think it's also worth noting that you should be careful not to bend the trims/seams where the front and back covers meet with the pick. When I first opened my deck you can definitely see where I nudged the pick in between the covers since I was probably using too much force on the pick itself.

Kaleb McKone -

It would be useful to note here that if you want to insert the little blue triangular iFixit opening picks into the right side along the edge, there isn't actually a gap as the directions say, at least not on newer Decks. You'll be making the initial gap using the pick. Brace it on something because you will need to use enough downward force that you're flexing the pick a bit and it'll probably be digging into the skin of a bare hand. With enough force suddenly it will make a click and go in just a bit, and then you're in business.

CaptFrost -

Step 3

Once the clips are disconnected from one edge, the rest disconnect easily.
Grip the back cover at the opening you just created and pull it up and away from the device to unclip the long edges.
Remove the back cover.

If you have an SD card, you will want to take it out. I followed the guide and didn't think about the SD card I had inside. When I went to snap the case back on it clapped shut on the exposed SD card, shearing it in half and leaving the bottom half stuck in the SD card slot. I am still endeavoring to get it out.

Novice -

Step 4

Use a pair of tweezers to remove the piece of foil tape covering the hidden screw on the board shield.
If possible, try not to rip or tear this tape so it can be reused. If necessary, you can fashion a replacement by cutting a piece of aluminum foil tape to fit.

Use some heat here from a hairdryer to make this part easier.

If you screw up here you can replace the little aluminium square with some aluminium tape from Amazon. No less than 50 microns thick, slightly thicker is fine. and the square is 13mm both ways.

Matt S -

Step 5

Use a Phillips driver to remove the three screws securing the board shield:
One 3.4 mm screw
Two 3.7 mm screws

The procedure ended here for me, used an ifixit PH 00 bit on the screw behind the aluminium tape, bit wouldnt bite too great, one wrong twist and the screw was stripped. Not sure who or what initially screwed in that particular screw as the rest of the screws on the shield were fine, but boy is it in there tight. So now i have a stripped screw and a botched ssd replacement, don't think valve will let me RMA for this, but i'll give it a try and update accordingly.

Y. van S -

I think the tendency is to go too small on the screwdriver bits because you're working on small electronics.

I used the PH1 bit on the screw under the foil and the PH0 bit for the two remaining screws without any problems.

Charles Semple -

What does this shield actually do? Some kind of magnetic protection?

Corey Cleric -

if I had to replace the key (R2) and that's it, can I directly remove it or do I have to act here on the motherboard too?

pujattidanny -

button Not key, i’m sorry

pujattidanny -

I used the ifixit tools and used the 00 PH for these screws with no issue

Luis B -

Step 6

Remove the board shield.
During reassembly, ensure that the fan cable lays on the side of the board shield and isn't pinched underneath.

When putting back on, run a pick along the edge of the shield between the wires to make sure nothing is pinching and the wires are clear of the shield before screwing down.

Matt S -

Step 7

Grip the battery cable by its pull tab and pull it directly away from the motherboard to disconnect it.
Alternatively, use the flat end of a spudger to gently push the connector out of its socket, then disconnect it completely by hand.

After fully reassembling my device I found that my battery was not showing any stats anymore. I couldn't start the device without being plugged in, however if I restarted it would stay on even if my power cable was detached. Battery showed 0%. It turns out I had not fully reinserted the battery cable at this stage during reassembly. MAKE SURE YOU PUSH IT ALL THE WAY BACK IN!

Michael Hoffmann -

Awesome thanks for this tip!

petergeranio -

It is helpful to lift up gently with a the tapered end of a spudger underneath the tucked-in portion of the battery cable, creating a bit of flex in the cable before pulling on the pull tab. I found that without doing so, the fabric pull-tab simply tore off of the cable under light-to-moderate force (the fabric itself ripped cleanly across, like a paper towel). Careful, gentle pressure with a spudger can be used to remove the plug by prying gently on the rear ridge of the plastic plug (not the wire!) if this happens.

Gene Eckser - 08/08/22

This is exactly what happened to me. Maybe it was a pull tab previously, mine was a ribbon cable that tore - captured the image here: https://www.ianwootten.co.uk/2022/11/22/...

Ian Wootten -

I found it less scary and easier to remove the battery connection by using a fingernail on the ridge and pushing it off the connector. I felt like pulling on the battery cable was too harsh.

montgomery mchargue -

Upon plugging the battery back in, I found it easy to use two spudgers- one on each side- to pull/push the connector back into it's port. Be careful to not put any pressure on the battery wires themselves.

montgomery mchargue -

When reconnecting the battery cable, you'll know when it's inserted and power is restored, because the white LED will illuminate at the top of the Deck near the power button. You should be able to see it while you're reconnecting the battery cable

Michael Davis -

Why not just let the battery discharge completely and then not have to disconnect it?

Jeffrey Martin -

Completely discharging a battery reduces its lifespan. It's completely unnecessary.

Stefan Camporese (CENTER) - 12/11/22

I would personally not recommend pulling the tab. It doesn’t apply force at the correct angle. You should revise these instructions to advise using a combination of pulling on the tab, and careful pressure on the connector towards the right of the mainboard to carefully work it out.

Using the pull tab alone could cause problems if not done extremely carefully.

William Winborne - 09/01/23

This part was wayyyyy easier than I anticipated and I worried for nothing because I used the ifixit spudger to push it out a bit and then I literally used my finger nail and was able to slide it right off. Dont be afraid, its not that difficult and its not that delicate to break if you do it patiently

Luis B - 10/01/23

Step 8

The left trigger will be on your righthand side when working on the Steam Deck, as it's laying upside down.
The Steam Deck's triggers clip into place on two pegs on the trigger bracket, which doubles as the hinge.
Place the flat end of a spudger onto the inside edge of the trigger's left clip.
Pivot the trigger clip out, away, and up from the peg to unlatch it.
During reassembly, latch the outermost peg first. Once in place, push down on the trigger to latch the innermost peg, producing an audible "click" sound.
Check to make sure that the trigger spring is properly aligned. Test the trigger action before continuing reassembly.

Step 9

Remove the left trigger.
Take care to not lose the trigger spring. It press-fits onto a peg on the trigger's underside.

Step 10

Use a Phillips driver to remove the three 5.2 mm screws securing the left trigger bracket.

Step 11

Remove the left trigger bracket.
Replacement triggers require calibration to work as expected. To calibrate new triggers, follow this calibration guide.

Step 12

Use the pointed end of a spudger to lift up the small locking flap on the thumbstick cable's ZIF connector.
Use a pair of tweezers to slide the cable out of its connector.
Grip the cable by the blue pull tab, not by the cable itself.

Step 13

Use a Phillips driver to remove the three 5.2 mm screws securing the thumbstick.
During reassembly, you may need to hold the Steam Deck off of the work surface so it isn't resting on the new thumbstick while you tighten down the screws.

Step 14

Remove the left thumbstick.

Step 15

Use the pointed end of a spudger to lift up the small locking flap on the button board interconnect cable's ZIF connector.
Use a pair of tweezers to slide the cable out of its connector.
Grip the cable by the blue pull tab, not by the cable itself.

Interconnect cable is along bottom of left board (on your right hand side). Ought to put a picture of where it is for easier reference.

David Boers -

Step 16

Use the pointed end of a spudger to lift up the small locking flaps on the rest of the button board ZIF connectors. Use a pair of tweezers to slide the cables out of their connectors:
Disconnect the D-pad cable.
Disconnect the touchpad board cable.
Disconnect the touchpad cable.

Step 17

Exercise caution when lifting this connector—pry up on the connector itself, not its housing.
Use the pointed end of a spudger to lift up on the haptics cable to disconnect it.

Step 18

Use a Phillips driver to disconnect the four screws securing the left button board:
Three 5.2 mm screws
One 3.9 mm screw

during reassembly you will need to remember to line up board with 2 plastic mounts. pcb has good flex and can push down top to get top screw to line up flush

B P -

also the 2nd cable from the top (the one below shoulder button cable) should be pulled free before tightening your screws lol

B P -

Step 19

Remove the left button board.

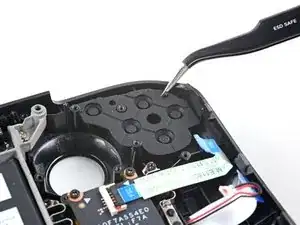

Keep track of the Steam button and its membrane, as once the left button board is removed, they're no longer secured in place.

This is useful, but how do I get a Left Button Board? Mine is damaged in the left bumper button micro switch and I need a replacement.

KaizerJV -

i thought i needed to replace L1 but i need to replace daughter board too. Valve has said they will supply left daughter boards they are just sold out rn

B P -

Step 20

Use a Phillips driver to remove the two 5.2 mm screws securing the left bumper assembly.

Step 21

Remove the left bumper assembly.

When reassembling, you may need to force the bumper in a bit until you hear it click.

When I was first reassembling it, I had difficulty screwing the button boards back in. Additionally, my bumper and dpad felt like they were not sitting correctly, when fully reassembled. I believe this was because I didn't fully push in the left bumper assembly even though it looked like it was sitting in place correctly.

Aki Nicholakos - 23/11/22
