Samsung Galaxy A10 Charging Port Replacement

Written By: ZFix
  • Comments: 0
Samsung Galaxy A10 Charging Port Replacement

Difficulty

Moderate

Steps

7

Time Required

25 minutes

Introduction

Samsung A10, A10s Micro USB Charging connector Replacement

  1. WsFDN565JBR2yMFJ
    WsFDN565JBR2yMFJ
    oZEUOFQEOasFGPgj
    XNg6GsHxuTXGEFnu

    • Remove the SIM Tray.

    • Use plastic tools to separate the back cover.

  2. sQeUTgmyiiM24FmW
    sQeUTgmyiiM24FmW
    jtS2a3PdDuFcqP1w

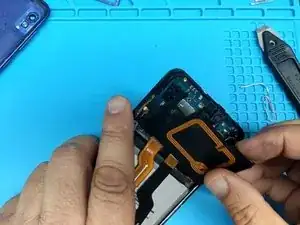

    Ywc6JZisbXAhKHmA

    • Remove the silver Phillips screws to be able to disassemble the motherboard shields.

  3. eoxWfSDx6lVgV1XR
    eoxWfSDx6lVgV1XR
    pQ5VmjsRUOnDMRTj

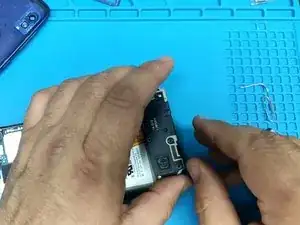

    UTjsIGep5GlMer2Z

    • Disconnect the battery.

    • Remove the screws and the charging board shield.

  4. 3raANqY3RDHGARZN
    3raANqY3RDHGARZN

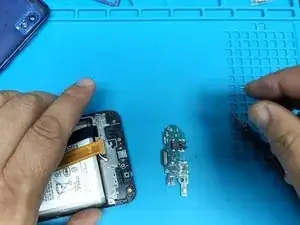

    LtnbTp4TOGQZHYNc

    • Disconnect the Main flex cable and the coaxial antenna cables and remove the charging board.

  5. GoORTNdMOIgxPK6a
    GoORTNdMOIgxPK6a
    mRcLSNfWgj6jlovR
    UBJ4fjbOYXWrCfXE

    • Cover the microphone hole to prevent microphone damage.

    • Use hot air to remove the Micro USB connector.

  6. UaVqp2YvYM4eTStw
    UaVqp2YvYM4eTStw
    gO3NtWOZS1T1WX3O

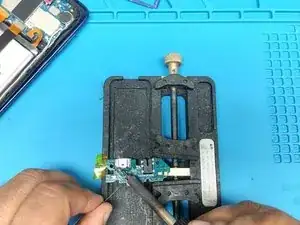

    jAR2ctPec5K4lgdX

    • Clean the tin and install the new charging connector.

  7. WxAoRXWdULjhEMJx
    WxAoRXWdULjhEMJx
    6YhYHjhuki6shRHD

    • Clean the board and test the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
