Samsonite Luggage Wheel Replacement

Written By: Xinyi Min
  • Comments: 8
Samsonite Luggage Wheel Replacement

Difficulty

Easy

Steps

8

Time Required

30 minutes

Introduction

Use this guide to replace a damaged Samsonite luggage wheel.

A damaged wheel may stick, causing the suitcase to veer off course, or preventing the suitcase from moving. A replacement wheel will help you fix the problem.

Step 1 will help you ensure that a replacement is needed and prepare for the replacement.

Step 2 will help you select the correct replacement part.

  1. kYeIOUIMELLpMEIK

    • Clean the wheel to make sure that the wheel is not stuck.

    • Sometimes wheels don't work because they're caked with dirt or debris. This step can help you make sure that it needs to be replaced.

  2. Xtgxn2DsxE2y5aPr
    Xtgxn2DsxE2y5aPr
    6uXQ5hvObOnalwVE

    • Select the right replacement by measuring the diameter and width of the wheel.

  3. jkC1MtDNeeVigJlV
    jkC1MtDNeeVigJlV
    gqq34XvErbjQ4iSJ
    JjpmB2tSRDKcAq1s

    • Remove the screws securing the wheel clip inside the case.

  4. SdoPCfDRG1BXf5uR
    SdoPCfDRG1BXf5uR
    SGCTTOIaQgMCkHLt

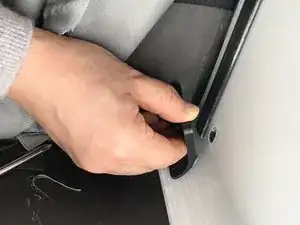

    • Pull out the clip securing the wheel to the case.

  5. 6mGjmkEnWoY2gyow
    6mGjmkEnWoY2gyow
    RMlxKFfyUSv6EWfX

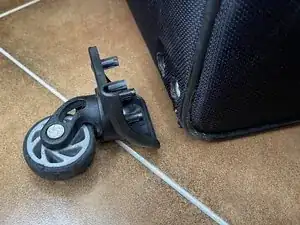

    • Remove the old wheel from the outside of the case.

  6. kFK6uACvJ31yGJDH
    kFK6uACvJ31yGJDH
    bmGfTMkjqWuBTUEb

    • Insert the new wheel onto the luggage, making sure that the tubes on the wheel base align with the holes in the luggage.

    You can see that it is NOT a NEW wheel! It's a shame, because the instructions would be useful if the case is otherwise still in good shape. Last year I unfortunately had to replace my good old Samsonite with a product from a competitor, because Samsonite no longer manufactures the product and has no suitable successor in its range ?! Since only the wheels were worn out, I looked for a replacement, but couldn't find a replacement (!) From the manufacturer, nor any usable alternatives, which is probably just not wanted in order to force a new purchase!

    Here it would have been really useful how to install alternative rollerblade / inline wheels as a replacement!!!

    Carsten Queschning -

    I wonder, if the axle could be drilled out and then the wheel be replaced.

    VauWeh -

  7. QyAahCWnGFxUBrsi
    QyAahCWnGFxUBrsi
    sKDtAt4r6wYtaHkx

    • Put the clip back to its original position inside the case.

  8. Q1tEr3BSxPXXEGHN
    Q1tEr3BSxPXXEGHN
    MHOkyfxHjxGGPwPi
    sdyijAtBOO1uYMyq

    • Tighten the screws that hold the clip back in place.

    Very good guidence.Thanks

    bagade umrao -

    Please, where did you buy the replacement wheel? My suitcase looks very similar to yours.

    Mark Romans -

    Mine also looks exactly like the photo, but where can you buy the replacement? The assembly is elementary, but useless information if the new replacement is nowhere to be found!

    Steven Z -

    Replacement is a no-brainer. Problem is getting the replacement wheel...

    Jan -

Author

Xinyi Min

Member since: 15/01/21

263 Reputation

2 comments

Where can i get replacement wheels

ROBERT HAGGERTY -

Too limited in the range covered. Does not mention 6"x1/2" wheel replacement.

Angus -
