Repairing Casio Exilim EX-Z850 Speaker Replacement

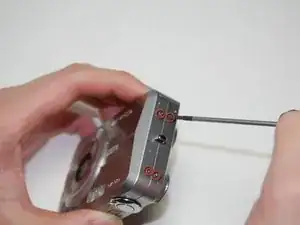

Remove the four screws on the side with the speaker

Remove the four screws from the bottom of the camera.

Remove the four screws on the side opposite of the speaker.

Pull apart the bottom casing.

Remove ribbon from the rear casing.

Set aside rear casing.

Use tweezers or prongs to pry the LCD screen off from the opening.

Lift up the LCD screen, slowly move it to the other side.

Pry off the LCD casing which is taped on to the frame.

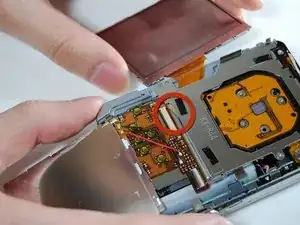

Flip open the connector holding the ribbon.

Pull out the LCD screen with the ribbon from the camera.

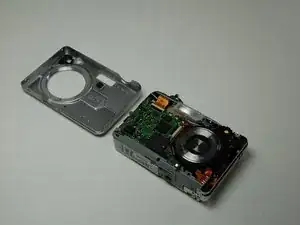

Pull apart the front casing.

Remove two screws on the side where the battery is located.

Remove the lanyard loop after the screws come off.

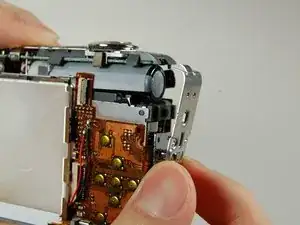

Slowly pull the side casing so it becomes dislocated from the top of the camera frame.

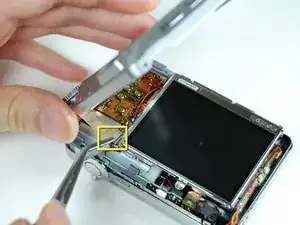

On the front of the camera near the flash flip the connector holding the ribbon.

Remove the ribbon from the connector.

Carefully remove the L shaped frame from the camera

At the bottom of the camera the L shaped frame is being held in by two plastic bumps and a metal tab.

Pop the frame off the bumps and tabs.

Note: There is a yellow and orange wire soldered onto the camera. Be careful not to pull them off.

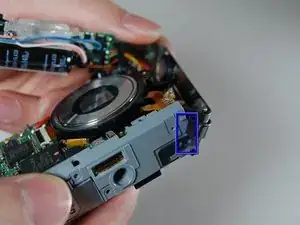

The blue box is the speaker

Remove the speaker with tweezers
