PlayStation 2 Slimline Optical Drive Replacement

Written By: tlroesner
  • Comments: 1
PlayStation 2 Slimline Optical Drive Replacement

Difficulty

Difficult

Steps

3

Time Required

30 minutes

Introduction

If the optical drive of your PlayStation 2 Slimline is broken, this guide will provide a step-by-step process on how to access and remove the old optical drive for repairs or replacement.

  1. bEFdlRC6AnuscDGR
    bEFdlRC6AnuscDGR
    kCbNRYARaNHUFvsc
    kPUDM4uVHBDJVYWJ

    • Remove the rubber feet on two of the screw covers on the bottom of the console.

    • Remove the screw covers and the screws themselves.

    • Caution: One of the screws is underneath the "Do not void" seal

  2. eAYTYhokNOAcDQ2C
    eAYTYhokNOAcDQ2C
    aBd6jlKsLV3hCeGP

    • If all screws are removed.

    • Use a metal spunger to open the chassis

  3. huNZRc6TThEU2WJf
    huNZRc6TThEU2WJf
    pPiGeNvk5n5JfPC6
    ZjQqAIXEPgturLTM

    • Slip the three cables out of the sockets.

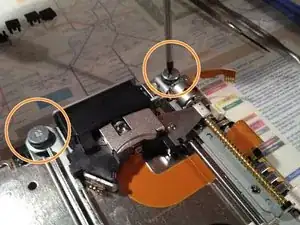

    • Use a PH01 screwdriver to remove the four screws securing the optical drive

    • Lift up the optical drive and remove the duct tape under the flex cable.

    • Now the optical drive is free and ready for replacement

Conclusion

To reassemble your device, follow these instructions in reverse order.
