Pentax ZX-5n Flash Capacitor Unit

Written By: Sam Gustafson
  • Comments: 0
Pentax ZX-5n Flash Capacitor Unit

Difficulty

Moderate

Steps

17

Time Required

3 minutes

Introduction

How to remove the two flash capacitors and the PCB they are attached to. A donor part from another camera will be needed.

  1. lgs2BFmwctNUvEEY

    • Push down on the screw to depress the spring loaded hinge and release the door.

  2. xqMOa4QfTrEMSjLQ

    • Remove six 5.3 mm #00 screws.

    • Remove one 3.4 mm #00 screw.

    • The short screw has a machine thread and screws into the plate underneath. The rest screw into the plastic body.

  3. JBNm1gvrrVIsOnvC

    • Remove three 5.3 mm #00 screws (the bottom-most screw is not always present).

    • Remove one 7.3 mm #00 screw.

    • Remove the remote trigger cover.

  4. kaurbKcGc3sICMvp
    kaurbKcGc3sICMvp
    qAMWaUYPEdKSqKBQ

    • Remove one 3.4 mm #00 screw.

    • Remove two 5.3 mm #00 screw.

    • Gently lift up on the flash housing to help remove the cover if necessary.

  5. XTT2gETZspMWvdLW

    • Remove two 3.9 mm #00 screws.

  6. 3my2vQuEkTFMiy1K

    • Slide the eye cup up and off to access the screws underneath.

  7. e53TOwaDpAgeyAD6
    e53TOwaDpAgeyAD6
    OJJ5WDhEjPdLrFAa
    XYapgMENQtcSAZZH

    • Remove two 5.3 mm #00 screws by the eyepiece.

    • Remove one 6.8 mm #00 screw in the battery compartment.

    • Remove one 7.0 mm #00 screw near the take up spool.

  8. htpX4AygbXbvTyuw

    • Lift the cover so it is just free of the body. It is still attached by several wires.

  9. EFlKCVmvVgDDLxaG

    • Use a 1kΩ-10kΩ resistor to discharge the capacitor. Place the resistor between the blue wire, exposed in the previous step, and ground.

    • The flash capacitors store energy at a very high voltage. Failing to discharge the capacitors properly could result in personal injury and/or damage to the camera.

  10. WFylZB5bMqTOGvD4

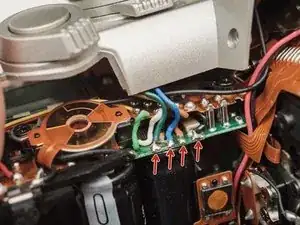

    • De-solder the green, blue, brown and black wires from the flash PCB.

  11. HOKWLOh2yNg6DQZL
    HOKWLOh2yNg6DQZL
    ga2UdqOFAj3PiPot
    jlANcHMqBCEjTIhY

    • Move the top cover to the side to access the battery connections. It is still connected by a flex cable.

    • De-solder the indicated joints. Use a solder sucker on the tabbed connections.

    • Pull the black wire from the battery flex to get more slack in the connection to the top cover.

    • Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

  12. cwTT1OO3NASdSWar

    • De-solder the marked connections.

    • Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

  13. ywWMNUNRinvtxUBv

    • Use a solder sucker to de-solder the four posts from the flex circuit.

    • This is the most difficult part of the repair. Patience and persistence are required.

    • Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

  14. N2ZakjMEIJ4uPcEx

    • Remove one 4.3 mm #00 screw.

  15. BJWKBkWKOX3LNEXa
    BJWKBkWKOX3LNEXa
    iUKQN4JxkMihbEHH

    • Gently pry up the plastic carrier under the flex circuit. It may catch slightly on the battery contact tab.

    • Pay close attention to the connections around the four through-hole posts as you lift the flex. Make sure that no solder is left over and that it pulls away freely.

    • This metal tab is lightly held in place with lacquer and can easily come loose. Keep an eye on it.

  16. rW36Nytm5MX4ypxw

    • Remove one 3.3mm #00 screw.

    • Remove one 3.9 #00 screw.

    • De-solder the red wire.

    • Peel off the black tape. Leave it attached to the wires.

  17. RW4tpsArJ2gxXCJF
    RW4tpsArJ2gxXCJF
    ZVd5QUYQqYSrQWBb

    • Gently peel the flex circuit from the surface of the capacitor.

    • There may be additional adhesive underneath the larger capacitor.

    • Lift the two capacitors and the flash PCB out as a single unit.

    • The contact cement used to secure the capacitors can be softened with isopropyl alcohol if necessary.

Conclusion

To reassemble your device, follow these instructions in reverse order.
