Nokia 6590i Logic Board Replacement

Written By: Colby Leslie
  • Comments: 0
Nokia 6590i Logic Board Replacement

Difficulty

Moderate

Steps

9

Time Required

10 - 15 minutes

Introduction

This guide will show how to remove the phone's logic board.

  1. PL5bmWPJGIU1cTgT
    PL5bmWPJGIU1cTgT
    sMRLydCeSd2YDWNL

    • Press the button to remove the back cover.

    • Keep the button pressed while pulling the cover downward.

    • Lift the cover off.

  2. PlJaZAKcGhKECkMM

    • Lift the battery out of the phone by pushing it down from the top and pulling it out.

  3. fDLMdgCBoUKgFsSP

    • Grip the front cover from the bottom.

  4. QnhHLEGMjTLCyZ4R

    • Lift the front cover off.

  5. iaUI3oyre5yvqv4c

    • Remove the six screws using a T6 torx screwdriver.

  6. JPK6kg3gEgyqYmdM

    • Insert spudger along edge of assembly and gently lift assembly away from case

  7. Ovelo3yQUKEGRsAs

    • Remove assembly from phone

  8. J6QXtHHDeXKMv3Nf

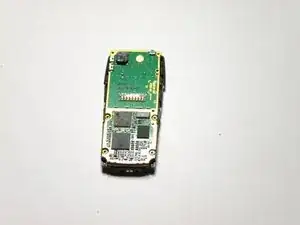

    • The logic board now sits on top of the phone.

  9. G43iBNurRaX26wNG

    • Lift the logic board out of the phone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
