Nintendo 3DS XL Left Bumper Replacement

Written By: Jack Belcher
  • Comments: 1
Nintendo 3DS XL Left Bumper Replacement

Difficulty

Moderate

Steps

9

Time Required

30 minutes - 1 hour

Introduction

So you dropped your 3DS XL and your left bumper needs to be replaced. Over time, the left shoulder button and ribbon cable may no longer register presses. This guide will provide the steps to replace the left bumper/left ribbon cable.

  1. D6MdUxBLJ2Jctm25

    • Remove the SD card and the game cartridge from the device.

  2. hOdYpqJRAAFpWUOe
    hOdYpqJRAAFpWUOe
    xHgtSN6rMqCulxL2
    gM3DF3DACFGjLIp5

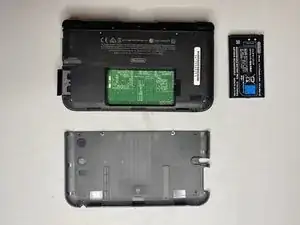

    • Unscrew the two captive screws on the battery cover panel with a Phillips #00 screwdriver.

    • Remove the battery cover panel.

    • Remove the battery.

  3. DqTiXROwP4IHGk56
    DqTiXROwP4IHGk56
    ah1sDO3pUDMNiKIo

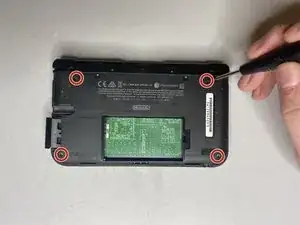

    • Remove the four visible screws on the battery panel using the Phillips #00 screwdriver.

  4. guiqsAVRDQxL5M4C
    guiqsAVRDQxL5M4C
    qPTUsVgOZAJTUdvD
    lkgXeii2FGCIDHfd

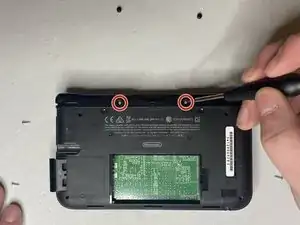

    • Remove the screw covers and remove the screws.

  5. A2LX1HXJKWU5KKc6
    A2LX1HXJKWU5KKc6
    ZhrUQSwkYbeDVxLi

    • Remove the tiny screw by the game card compartment.

  6. euTT2ZrD3D5RAmpO
    euTT2ZrD3D5RAmpO
    4PDRlwnSc1kRHLKQ

    • Lift the battery panel off of the device.

    • Grab from the cartridge holder and pull back to remove.

    • Be careful to not pull off ribbons from the motherboard.

    • Disconnect the ribbon cables from the motherboard.

  7. 5igOFKT3Hkhgp3sO
    5igOFKT3Hkhgp3sO
    RO2XjlfTjlW3crWV
    6PF3sBSvorrYMj1k

    • Remove the left bumper assembly screws.

    • Remove the spring.

    • Note that the spring could eject as you do this.

    • Remove the hinge pin.

  8. gAWVQww3QceyA1M6

    • Separate the bumper from the bumper assembly.

  9. t4WAAZSJF6KM1cyR
    t4WAAZSJF6KM1cyR
    nsDHNpEoTtpTSapC

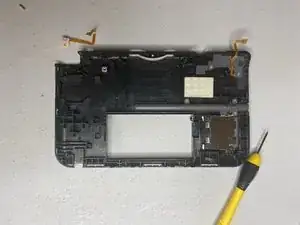

    • Using your fingers, remove and replace the left bumper ribbon cable.

    • Pull carefully on the ribbon cable so as to not damage it and/or the case.

    • The ribbon cable can be removed by other means such as using gloves or a microfiber cloth if preferred.

Conclusion

To reassemble your device, follow these instructions in reverse order.
