Nintendo 2DS Joystick Replacement

Written By: Fina Beauchamp
  • Comments: 20
Nintendo 2DS Joystick Replacement

Difficulty

Moderate

Steps

10

Time Required

15 minutes

Introduction

We will teach you how to first remove the battery and back panel then access the joystick for repair or cleaning purposes.

  1. wg4RTxdhgZNOVaab

    • Remove the two Phillips captive screws securing the upper rear panel.

    • The captive screws will not completely detach from the back panel.

  2. cdb3AdyJTrNhIjrr
    cdb3AdyJTrNhIjrr
    okYxlIGDUBKBdGNP

    • Hinge the upper rear panel upwards and outwards to remove it.

  3. YA2mNvc2fLpeZ4NZ
    YA2mNvc2fLpeZ4NZ
    yjKMPFAO1SC1LncE
    HRaiAoWcVXEMByll

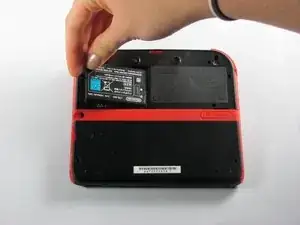

    • Remove the battery from its housing by lifting it up from the side closest to the outside edge.

  4. vkEjnCVvCfkcXpKn

    • Remove the ten Phillips screws attaching the rear panel.

    Can't take off the screw top left next to the battery. What type of screwdriver do I use and where can I find some?

    Little Mac -

    I used a husky with changeable heads, you could probably find one on amazon

    Minecrafter Pig -

  5. ona5d6XElywnV2F6

    • The rear panel is attached to the motherboard by a ribbon cable, so be careful not to lift the rear panel too far from the device.

    • Carefully pull the rear panel straight up from the device.

  6. nCtU5fTtc3gYBBVe

    • Carefully flip the back panel over to locate the attached ribbon cable.

    • Remove the two Phillips screws attaching the ribbon cable to the rear panel.

    • Take the opportunity to remove the Left and Right triggers, they have hinges that may break and springs that may jump away.

    You can also detach the cable from the motherboard safely by flipping up the connector on the motherboard. Just don't forget to reattach. Some will find this tedious but may save time if you know what you're doing with said connectors.

    Blackbeard -

    pay attention: my 2ds dropped it's lens covers at this step

    Jos van Reenen -

    Likewise, I used a tiny drop of glue to put the lens back in place. Take care not to dirty the lens.

    Elliot West -

    The picture you have there has the camera lens ribbon installed upside down. The ribbon needs to be pointing down when you re-attach it not up.

    Rick Parrish -

    Agreed, ribbon cable looks upside down in picture

    Elliot West -

  7. OA3KY2vYVXvmDlIj
    OA3KY2vYVXvmDlIj
    xhqkQD6RicMmTXgP

    • Remove the trigger button on the top right corner by pulling upwards and outwards.

    • Remove the right red side panel by pulling outwards.

    I recommend not removing the right trigger. I didn’t find it necessary and I hard a hard time getting the spring lined up again.

    Tyler Schommer -

  8. VqvqpHxnUj2YUAOW

    • Use a spudger to lift the gray locking lever on the joystick ribbon cable ZIF connector. Pry straight up from the motherboard on the side of the connector opposite the cable.

    • Gently slide the cable straight out of the connector.

  9. yxAc6pZGAtvbZiMg

    • Remove the two Phillips corner screws holding the white joystick cover.

  10. PAeyOJ6nwJPS2x1P
    PAeyOJ6nwJPS2x1P
    adcYyWtwuAunNC1v

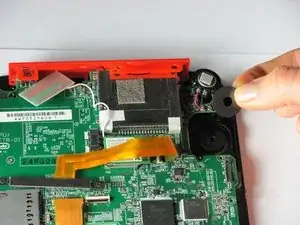

    • Remove the joystick cover. It should detach with little force.

    • Remove the joystick washer under the joystick cover.

    I completed the tutorial but my stick is now drifting by itself and I’m afraid to open it up again and try because the screws, it seems, are damaged from scratching it too much. It’s been like that for at least a year

    ImTHATGuy 500 -

Conclusion

To reassemble your device, follow these instructions in reverse order.
