Motorola V557 Headphone Jack Replacement

Push down on the silver button while sliding the back plate down to reveal the battery.

Grab the lower edge of battery at the black areas and pull upward on the edges to remove it.

Move the the metal slider towards the top of the phone until it clicks out of its original position.

Slide out and remove the SIM card.

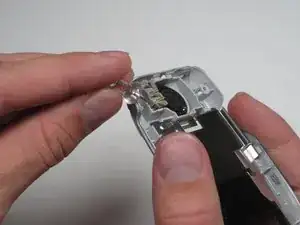

Grip the antenna and twist it counterclockwise to loosen it.

When it has been loosened all the way, pull gently to remove the antenna piece.

Remove the screw covers over the two top screws by prying gently with a pin.

The large cover in the upper left of the back plate has no screw behind it, so should not be removed.

Remove all four 6.0 mm Torx screws.

Insert a spudger into marked holes, one at a time, and pry away from the phone to release internal tabs.

Separate and detach the rear casing.

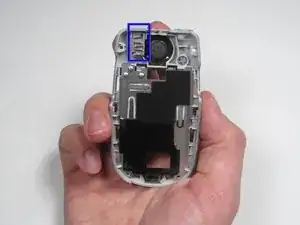

Lift out the headphone jack section from the sides using a push pin.
