Motorola Moto G Power (2020) Fingerprint Sensor Replacement

Written By: Harry Jung
  • Comments: 0
Motorola Moto G Power (2020) Fingerprint Sensor Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

This is guide to replace the fingerprint sensor for Moto G Power (2020). Follow this simple step by step guide to make your repairs successful! If you're experiencing other issues, please check out our troubleshooting page. Before following these steps make sure to visit the pre-requisite guides to see how to get the device in the condition shown in this guide.

  1. NlNvYg4aErSADkqc

    • Place a suction cup on the back of the device.

    • Open up the back of the device by sliding the opening pick into both sides of the phone.

    • Do not remove the back panel completely; you must disconnect the fingerprint sensor first.

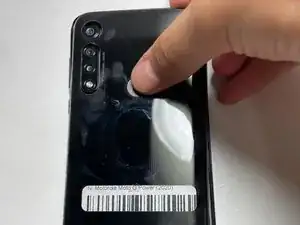

  2. FJKWh1To5AwVJiSB

    • Put pressure on the fingerprint sensor with your finger to detach it from the back panel.

    • You may have to use significant force to get the circular sensor off the panel.

  3. JmuULJFCOcDaiIIC

    • Completely remove the back panel from the device.

  4. VkO3KWkVeZkYEV1U

    • You must remove the back cover of the phone to access the fingerprint sensor

    • Using T3 Screwdriver, take out total of 9 screws(about 2.2mm Torx)

  5. 34oWAtPjn23Dackc
    34oWAtPjn23Dackc
    nN3E3wqBpTPEMnSX
    QFjVx2Lk31sQ1pnZ

    • Remove the back cover using the spudger

    • You may need to leverage against the conner to lift up the cover

    • Carefully place the cover in a safe place

    • DO NOT use excessive force when lifting up the back cover. You might damage other component of the device

  6. 154NYTRJnCcXFifK

    • Disconnect the fingerprint sensor from the logic board of the device

    • Use spudger to lift up the cable to disconnect the fingerprint sensor

    • WARNING: Be careful when handling the sensor cable, it's one of the easiest component to be damaged

  7. g5MWjPvDaqnxYKEt

    • Finally, take out the fingerprint sensor from the device!

Conclusion

To reassemble your device, follow these instructions in reverse order.
