Motorola Moto G Power (2020) Charging Port Replacement

Written By: Harry Jung
  • Comments: 0
Motorola Moto G Power (2020) Charging Port Replacement

Difficulty

Moderate

Steps

8

Time Required

4 - 10 minutes

Introduction

This guide will teach you to replace the charging port in a Moto G Power (2020). If you're experiencing other issues, please check out our troubleshooting page.

  1. NlNvYg4aErSADkqc

    • Place a suction cup on the back of the device.

    • Open up the back of the device by sliding the opening pick into both sides of the phone.

    • Do not remove the back panel completely; you must disconnect the fingerprint sensor first.

  2. FJKWh1To5AwVJiSB

    • Put pressure on the fingerprint sensor with your finger to detach it from the back panel.

    • You may have to use significant force to get the circular sensor off the panel.

  3. JmuULJFCOcDaiIIC

    • Completely remove the back panel from the device.

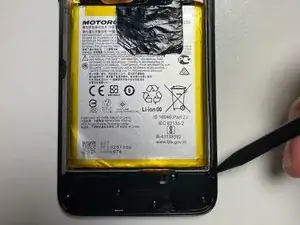

  4. lQbXP5HZAQKSOyKl

    • Remove three 1.8 mm screws using a T3 Torx screwdriver.

  5. P6uQ5WOKPoZ2SULR
    P6uQ5WOKPoZ2SULR
    sKNLiHhgJxLkEaKA

    • Lift the bottom cover of the device using the spudger.

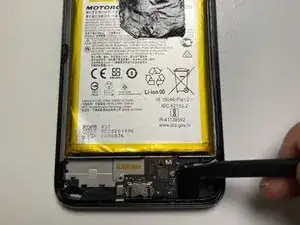

  6. Zvi5Db1AnS5MLBBH
    Zvi5Db1AnS5MLBBH
    6YBVk6wL2cZEgbIY

    • Use the spudger to lift the metal connection.

    • Disconnect the cables located on the right side of the device from the charging port.

    • There should one white wire and one black wire.

  7. OfnEjvUOwhZQ2hUK
    OfnEjvUOwhZQ2hUK
    q6BMk1Gc4VGPAPrp

    • Use a spudger to lift the charging port out of the device.

    • You may have to use some force to get the adhesive loose.

    • DO NOT use excessive force.

  8. KVtuWGGlMc2UxHmu

    • Grab the charging port, then slide it out of the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
