Logitech MX Anywhere 3 Battery Replacement

Written By: Tobias Isakeit
  • Comments: 4
Logitech MX Anywhere 3 Battery Replacement

Difficulty

Moderate

Steps

15

Time Required

25 - 40 minutes

Introduction

Use this guide to replace a worn-out or dead battery in your MX Anywhere 3.

If your battery is swollen, take appropriate precautions. For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair.

You might need replacement adhesive to reattach components when reassembling the device.

  1. NLKHbtueBALsTBs2
    NLKHbtueBALsTBs2
    XLUTwgIlbUwjhXUx
    VXSErvxiBxGoZULR

    • Flip the power switch into the OFF position before you begin any repairs.

    The back of my mouse does not loo like the one in your picture

    Joan Ludwig -

    This picture is different than mine and I didn’t have to go through all of these steps. I didn’t even need tools.

    But I just can’t remember how easy it was after I figured it out

    Joan Ludwig -

  2. RyUFDDkl3MVRCXKC

    • If you’re planning to reuse the feet note that the adhesive needs to be thoroughly heated for them to be cleanly removed.

    • Use an iOpener or hair dryer to heat the adhesive underneath the feet.

    • A hair dryer or heat gun may also be used, but be careful not to overheat the mouse—the internal battery is susceptible to heat damage.

  3. uWZnKm4auGKn1W6v
    uWZnKm4auGKn1W6v
    CUPSdIlhJrsZxB6B

    • Locate the gap in the rim around each foot. This is where to place the tool in the next step.

  4. ScBiFTZdTAXiLrxP
    ScBiFTZdTAXiLrxP
    ERZDn6aI2XlU5aSV
    IdpNqMgXdrEAkWRP

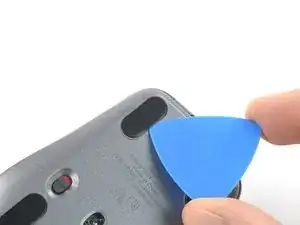

    • Repeat the following procedure on all four feet:

    • Push the tip of an opening pick under the mouse foot adhesive where the gap in the rim is.

    • Go slowly, and make sure the pick is underneath both the foot and its adhesive layer. It's easy to separate the foot from its adhesive.

    • Twist the opening pick to separate the foot from the bottom until you can grab it.

    • Remove the foot.

    • To reuse the feet softly tack them on a clean surface such as a magnetic mat or a sorting tray.

  5. FFHEDKu5kasBCsTQ

    • Use a Phillips screwdriver to remove the four 4.3 mm-long screws securing the two halves of the mouse together.

  6. wO4ibQaTZKLTSDP4
    wO4ibQaTZKLTSDP4
    ZKIXYOHD1pHTcytE
    WdcNtSP4IXeVFcE3

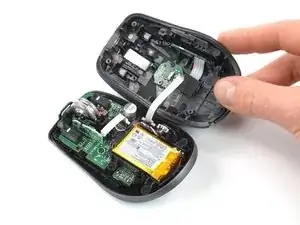

    • Don't completely separate the two halves yet—they're still tethered together by a delicate cable.

    • Open the top half of the mouse like a book to the right side.

  7. CYKBoIvUiL4AFxEu
    CYKBoIvUiL4AFxEu
    1KoQaOpwAPSyY4oI

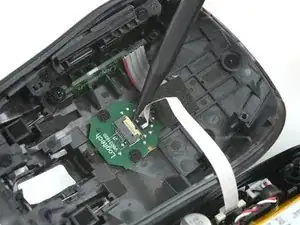

    • Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the interconnect cable ZIF connector.

  8. CdTEJCl2igglBkNM
    CdTEJCl2igglBkNM
    1ivABlPhbgbdBdXE

    • Use your fingers to slide the interconnect cable out of its socket.

    On my MX Anywhere 3, the interconnect cable is also glued to the board on the top half of the mouse. It was much easier to pop up the white top of the connector on the bottom half of the mouse to free the interconnect cable.

    dustin -

  9. 2TWFVkSuT1a5Pm3d

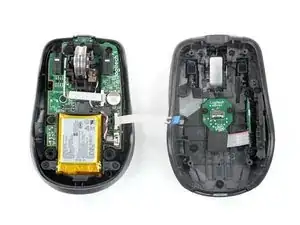

    • Remove the top half of the mouse.

    The switches in this mouse are the Omron D2FC-F-7N and they are very loud. It might also be the plastic chassis that's contributing to the overall clicky sound signature.

    Rad -

  10. hXSNnNuFwPpaJ5IE
    hXSNnNuFwPpaJ5IE
    3MlPbLWfG3jcCCAN

    • Use a pair of tweezers to de-route the wheel assembly cable from its plastic guide in the battery frame.

  11. FHDfIXG2UHWevj5l

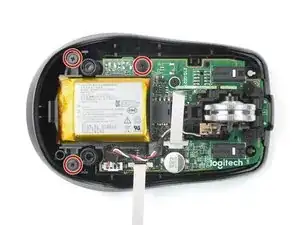

    • Use a Phillips screwdriver to remove the three 3.4 mm-long screws securing the battery housing.

  12. PugEMRjO1UsjO54L
    PugEMRjO1UsjO54L
    WidEWuigNxmDJnEl

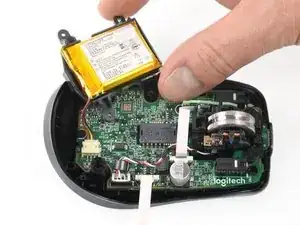

    • Grab the battery housing with your fingers and set it aside to access the battery connector.

  13. DUxFvnv4xAV46CgM
    DUxFvnv4xAV46CgM
    5ENlWlXPsVtviaGC

    • Use a pair of pointy tweezers and insert its tips in the two cutouts in the connectors socket.

    • Apply a concentrated and controlled force to not damage the motherboard by accidental slippage.

    • Carefully push the connector out.

  14. rvLXM5PMt3auVxWP
    rvLXM5PMt3auVxWP
    iIX5iIg3WdJMF46N

    • Grab the battery and its housing with your fingers and remove it from the case.

  15. kBfZ5rKGZibOLRHG
    kBfZ5rKGZibOLRHG
    mBCJWtqhYSWBUu3b
    h3oPk5ZFyldxQHT1

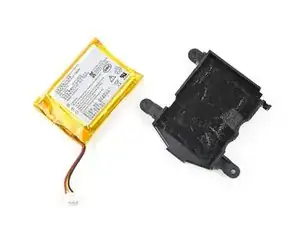

    • The battery is adhered with mild adhesive. If necessary, use an iOpener or hair dryer to heat the battery and housing so that it is warm to the touch to soften the adhesive.

    • Take care not to puncture or bend the battery with your tool—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.

    • Use the flat end of a spudger and insert it between the battery and its housing through one of the cutouts.

    • Lever the battery out of the housing by prying it up and out of its recess.

    • Remove the battery.

    • If possible, turn on your device and test your repair before installing new adhesive and resealing.

    • During reassembly, secure the new battery with pre-cut adhesive or double-sided adhesive tape. In order to position it correctly, apply the new adhesive into the device at the places where the old adhesive was located, not directly onto the battery. Press the new battery firmly into place.

Conclusion

To reassemble your device, follow these instructions in reverse order. Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

For optimal performance, calibrate your newly installed battery: Charge it to 100% and keep charging it for at least 2 more hours. Then use your device until it shuts off due to low battery. Finally, charge it uninterrupted to 100%.

Take your e-waste to an R2 or e-Stewards certified recycler.
