Lenovo Thinkpad X201 Trackpad Replacement

Written By: Peter Gachuki
  • Comments: 1
Lenovo Thinkpad X201 Trackpad Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

If the trackpad of your Lenovo Thinkpad X201 needs to be replaced, use this guide to remove the trackpad from your device.

  1. DQ4OMHav23SwZHhv

    • Flip the laptop so that the rear side is visible.

    • Slide the switch located near the top of the laptop.

  2. M4WTPKfRwdqAVy2q
    M4WTPKfRwdqAVy2q
    YF2ITp62En2D2NEb

    • Slide out the battery near the top of the laptop.

  3. aCSxYW1VGixZXPLA

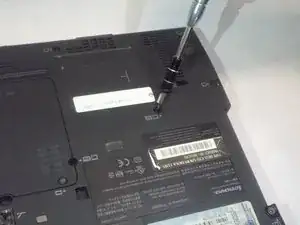

    • Remove all screws found on the rear side of the laptop using a Phillips #00 screwdriver.

  4. BDxvssAtUGQZfGII
    BDxvssAtUGQZfGII
    XHjQOCIbKSF4Z3Vd

    • Push the silver bar on the side of the laptop downwards.

    • The trackpad will pop up.

  5. fcEjjMvUJqoEvD3H

    • If step 4 does not work, gently push the bar down while using your other hand to pull the trackpad up.

  6. BkILA5GLllBtCvhu
    BkILA5GLllBtCvhu
    GALXESFhdfSwEQMy
    SsZTopZUHIG5BKfD

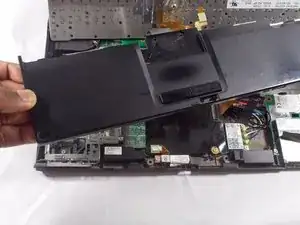

    • Remove the trackpad from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
