Lenovo ThinkPad X280 Display Assembly

Written By: Hannah Bryn Cullen
  • Comments: 0
Lenovo ThinkPad X280 Display Assembly

Difficulty

Moderate

Steps

5

Time Required

20 minutes

Introduction

This replacement will take approximately 20 minutes to take out the screen and put the other screen in.

  1. 3UPYbIucYqvFfhc4

    • Lay the computer flat on the back of the screen

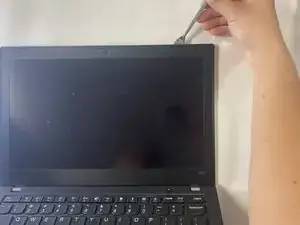

  2. xJrKiJkBlIWuKqID

    • Use the Metal Spudger tool to pry the screen away from the assembly.

  3. hdHsIwE25AJBmjEq

    • The screen will fold down over the keyboard exposing the connections.

  4. vYE2GlXDl4tfTTlh
    vYE2GlXDl4tfTTlh
    DyZNIDYBsOZGX6Sh

    • Use tweezers to gently remove the tape that secures the connector.

    • Lift the bracket on the bottom of the connector, and gently remove the bundled cable.

  5. RwnaJgT2fQDyxnyf

    • The screen is now free to remove

Conclusion

To reassemble your device, follow these instructions in reverse order.
