LG Thrill 4G Phone Buttons Replacement

Written By: Kenny Richmond

Comments: 0

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

This guide will show you how to replace the phone buttons on your LG Thrill 4G in just a few simple steps. A few tools that you may need are listed below. You should turn off your phone before starting.

Tools

Step 1

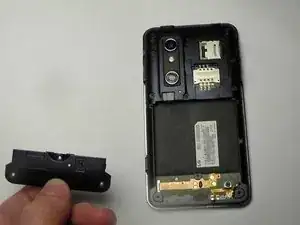

Pry open the back cover by using a fingernail or a plastic opening tool.
There is a small notch at the bottom of the cover for easy removal.

Step 2

Remove the battery from the phone.
There is a small ledge located at the bottom of the battery for easy removal.

Step 3

Remove the three Philips #00 screws from the bottom of the phone.
Two 5.5 mm screws
One 4 mm screw

Step 4

Use your finger or opening tool to wedge the speaker out starting at the small notch at the bottom of the phone.

Step 5

Remove the three buttons from the side and the top of the phone.
Power button
Volume button
3D camera button

Step 6

Place the plastic opening tool under the bezel at either bottom corner of the HDMI cover.
This loosens both the HDMI and USB covers for easy removal.
USB Cover
HDMI Cover
