JBL Xtreme Battery Replacement

Written By: Sylvain Bazile
  • Comments: 64
JBL Xtreme Battery Replacement

Difficulty

Moderate

Steps

9

Time Required

30 minutes

Introduction

This Guide will help you replace the battery inside a JBL Xtreme Bluetooth Speaker.

  1. pPDPdbHHNTLbBn1q

    • Locate the seams next to the 'feet' on the bottom side of the device.

  2. RQvvxOw2BSPi2gUb
    RQvvxOw2BSPi2gUb
    xu4RHpACjQ3H11eK

    • Use the metal spudger to gently pry and lift the edge of the seam. The cover is held in place with plastic snaps that will make a popping noise when disengaged. !!Start with the back half, this will expose TWO Screws that need to be removed before lifting the front half.

    Start with the back half, this will expose TWO Screws that need to be removed before lifting the front half.

    MrMindlink -

    Yes, the fact needs to be added that two screws need to also be removed to get the cover off. One side snaps off but the other is attached with two screws.

    Terry Kraft -

    %#*@^@. I ripped the plastic things apart. Should have red the comments first. &&^&.

    brobarongg -

    same here ;D just grabbed some glue and hope it will stick :D

    Patrick Tippner -

    Vorsichtig die Kante hochhebel, wo der Reissverschluss ist. Da ist die Hülle gesteckt. Die andere Seite hat Schrauben die man lösen sollte. Ansonsten zerstört man zu Beginn die Befestigung der einen Seite.

    Roland Bürger -

  3. hY4NHUuftxrAdXZm
    hY4NHUuftxrAdXZm
    nQ4DCYQvDELRulLT

    • For the first part of the case: gently pull back the edges of the case rotating along the hinge opposite the opening seam illustrated in the second photo. Plastic snaps hold the cover in place.

    • For the second part of the case: there are 2 screws to be removed at the seam. Once removed, the case will come off completely without forcing.

    Hello Where can I get a replacement cover?? Mine is damaged.

    juan.rey19 -

    Did u ever find it they sell the covers?

    jorgetovar698 -

    Careful with this step, my JBL Xtreme case was also held in place by wo little srews !

    Arthur Lecharny -

    It feels like you are “breaking” the cover, but in fact it seems to have a kind of “bending point” near the top of the cover by the exterior controls. Watch for the two screws to remove.

    Terry Kraft -

    There is two screws holding the cover at its other end beside the plastic snaps

    Nader Belaid -

    %#*@! broke one of the little snaps near the 2 screws. still holds tight though.. be careful when pulling them out. Also, don’t forget the screws

    Mike -

  4. qKkh3iRZdMwORuRO
    qKkh3iRZdMwORuRO
    QvXktYsfUptfyYPP
    FH2BgGTb5ERw3Luh

    • Unscrew the six 9.75mm Phillips head screws holding the bass radiator in place.

    • Three of the five outer screws are indicated in the first image and the sixth inner screw is indicated in the second image.

    This was the most difficult part for me. The screws are pretty tight, I needed a larger screwdriver to get them out.

    Terry Kraft -

    Achtung, die Bassstrahler sind mit dem Gehäuse über zwei “Klebedichtungen” verbunden. Diese müssen beim Zusammenbau wieder eingebaut werden.

    Carsten Schultze-Hartmann -

  5. hcbSAWpYTwYerNJw
    hcbSAWpYTwYerNJw
    yD1VyWXCPbT3l1Eu
    lSQYERFWiGiEunGe

    • Once the screws have been removed, the bass radiator will easily lift free.

    • Both radiators are identical. Repeat the above steps on the opposite radiator if necessary.

    where can i buy these parts mate?

    troy yerbury -

    Where can I buy the bass radiators independently?

    Daryl Duliep Hernandez -

    Ich empfehlen, erst den 7. Schritt auszuführen. So kann anhand der Kabel feststellen welcher Bassstrahler entfernt werden muss!

    I would recommend to do the 7th step first. So can determine, based on the cable, which bass radiator must be removed!

    Android Robo -

    Wo kann ich den die Ersatzteile kaufen bassstrahler und ein hochtöner???

    Sven Muelle -

    Schritt sieben zuerst ist eine grandiose Idee, erspart einiges an Nerven.

    Benni Basisch -

    die Linke Seite wie auf dem Bild ist die richtige. Dahinter findet man die Platine mit dem Anschlussstecker für den Akku. Somit sollte eigentlich 1ne Seite reichen.

    Roland Bürger -

  6. SRALufqBriUDSIqP
    SRALufqBriUDSIqP
    PyXVZUNJ5jWrQf23
    qWtrQoYUvAFHVX3n

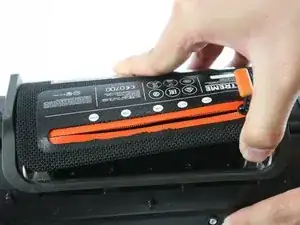

    • Locate the three 9.7mm Phillips head screws inside the zipper compartment and unscrew them.

    • Lift the zipper panel out of the speaker.

    • The side of the panel opposite the screws is held in place by small clamps. The panel should easily lift free from the device, but may require gentle prying.

    The screw on the left is tough to get at.

    Terry Kraft -

    Opgelet, de beide scharnierpunten zij in z-vorm (plastic) en kunnen afbreken.

    Ronald vdz -

    When opening pry from the back to unclip the clamps.

    Meavey -

    Achtung! Auf der Seite ohne Schrauben sind 2 Klemmen, die man schnell abreißt … daher das Teil nach lösen der Schrauben nicht nach oben wegklappen… sondern versuchen das ganze Teil vorsichtig nach oben zu heben. Ist am Ende aber nicht dramatisch und hält trotzdem.

    Roland Bürger -

  7. aPXgBHRFsCivcg3I
    aPXgBHRFsCivcg3I
    dy3BmGoeHAGSdgJt

    • Under the zipper panel are eight more 9.75mm Phillips head screws. Unscrew them and carefully lift the battery cover.

    • Be careful not to damage the small white ribbon cable which connects the battery cover to the rest of the device.

    • 2 small screws hold this part to the cover. For ease of future handling, remove them and gently pull this part out to release the cover.

    These screws are also very tight and easily stripped if not careful. Use a bigger screwdriver.

    Terry Kraft -

  8. OumHRHuVDk3icriu
    OumHRHuVDk3icriu
    Dqf1DmQYRQgU1OL1

    • Locate the cable illustrated in this picture.

    • Gently unplug the cable from the motherboard.

    Needed to use needle nose pliers to reach this plug.

    Terry Kraft -

    Note which way the plug goes in as it could get turned around.

    Terry Kraft -

    I did it by removing the speaker instead of what it shows in the picture!

    ISIDRO GOMEZ -

    My plug was glued with some red, waxy stuff - be aware. JBL folks don’t want you to change the battery :D carefully scratch the glue out without damaging the board and you’ll be fine.

    Benni Basisch -

  9. gQvbj5FKQpJCoAIK
    gQvbj5FKQpJCoAIK
    RpLhb6CbiNIvuWTm
    yUdNIIgetxrJGlmd

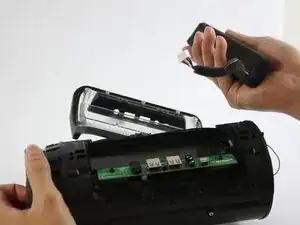

    • Carefully lift the battery free of the device, threading the cable through the hole in the case as you do so.

    Thanks for your help. I also changed battery capacity upto 18000 mah. https://youtu.be/dJgoooYk1v8 my work with poor English speaking sorry for

    Abrar Akram -

    Habe den Akku getauscht,leider blinkt jetzt nur noch die Bluetooth Lampe und ich kann mich mit keinem Gerät mehr verbinden.Koppeln geht,aber nicht mehr verbinden.

    Frank Lonnemann -

    Super Anleitung. Konto genau nach Bildern die Box zerlegen und den Akku tauschen. Vielleicht noch ein Hinweis zum kleinen weißen Flachbandkabel am Akkufachdeckel. Es ist für die Akkustands Anzeige. Wie empfohlen habe die Anzeige durch lösen der beiden kleinen Kreuzschrauben entfernt. Das macht das Arbeiten wirklich viel entspannter.

    Danke für die schönen Bilder und die Anleitung.

    Andreas Fahrenberger -

    Super Anleitung hat prima geklappt .

    Kai Meinhardt -

Conclusion

To reassemble your device, follow these instructions in reverse order.
