Introduction
This guide will show you how to remove the Front and Rear Cameras for the Huawei P8 Lite.
-
-

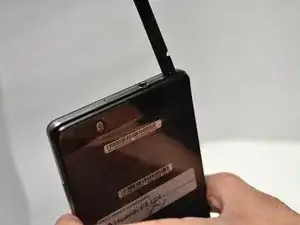

Using the Spudger (spatule antistatique), begin by removing both of the SIM slots from the side of the device.
-
-
-

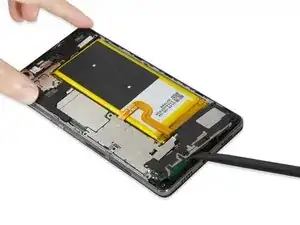

Then remove the back cover of the device with the Spudger (spatule antistatique). To prevent damage to the back cover, begin removing the cover half an inch to the right of the headphone jack and continue prying around the perimeter of the device.
-
-
-

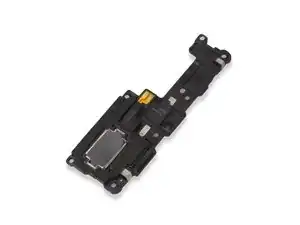

Locate the Loudspeaker at the bottom of the device.
-
Remove the four black screws using the Tournevis Torx T5.
-
Then use the Tournevis cruciforme #000 to remove the three silver screws.
-
-
-
Use the Spudger (spatule antistatique) to gently remove the Loudspeaker from the device. Place the replacement Loudspeaker into the device and follow these steps in reverse order to reassemble the device.
-
-
-

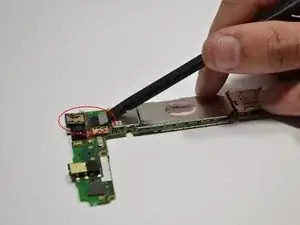

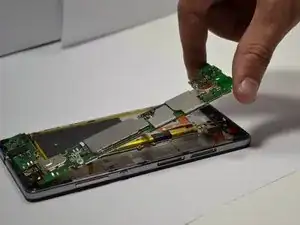

Once the motherboard is removed use the Spudger (spatule antistatique) to remove the Front Camera.
-
To reassemble your device, follow these instructions in reverse order.
