How to Unclog an Epson ET-2760 Printhead

Written By: Jack Buttry
  • Comments: 15
How to Unclog an Epson ET-2760 Printhead

Difficulty

Moderate

Steps

9

Time Required

30 - 45 minutes

Introduction

If your Epson ET-2760 printer is not printing complete lines and is having trouble printing a full color image, use this procedure to manually unclog the printhead.

The printhead supplies and transfers the ink onto the paper into the correct form for whatever is being printed, so before beginning, perform a head cleaning or a power cleaning to make sure that the issue must be dealt with manually. From here, the guide can be started following the steps below.

All of the following steps are easy to perform and require no prior skills. However, there is a chance that ink could get on one’s hands and clothes, so don't wear your favorite shirt!

  1. lOUfZgEwgIROKtJh
    lOUfZgEwgIROKtJh
    IsjaGaqgHZpKipU4

    • Begin a print of any kind, or a nozzle check.

    • Once the print has begun, pull the power cable out mid-print.

  2. eZsJD224OlbYusow
    eZsJD224OlbYusow
    UmbiUB5Sm1HrJd2l

    • Open the printer, then pull out the half-printed paper through the slot.

    • Place a thick paper towel or rag under the printhead.

    Place a thick paper towel or rag under the printhead?

    Assuming the printhead is now freely moveable at this point, DO we first push it to the rightmost docking position THEN place a paper towel? or to the leftmost position as picture indicates?

    Genesis Amadeus -

    Place a thick paper towel or rag under the printhead?

    Assuming the printhead is now freely moveable at this point, DO we first push it to the rightmost docking position THEN place a paper towel? or to the leftmost position as picture indicates?

    Genesis Amadeus -

  3. JyluUMBESODUXnvR
    JyluUMBESODUXnvR
    JRvMHVHiuRfGBVxP
    ueBVFwBnxtCLUWMX

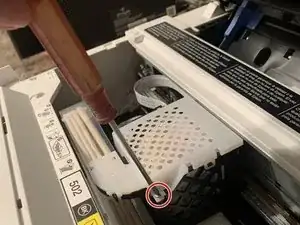

    • Remove the single screw with a Phillips #0 screwdriver.

    • Unclip the two white plastic clips.

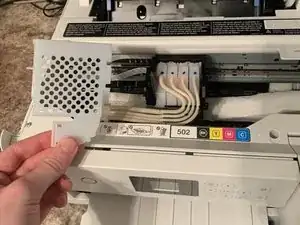

    • Lift the top cover off of the printhead.

  4. HJpYjJeIkVidtZYO

    • Unclip the four ink cartridges from the printhead by pulling the small tabs on top of the cartridges.

    • Be sure not to disconnect the ink lines from the cartridges. Simply set the connected cartridges to the side of the printhead.

  5. amfRctAbuBgmlFXg
    amfRctAbuBgmlFXg
    IkhO4RQXcWEhDRdx

    • Fill a syringe with printhead cleaning solution and place the syringe tip over the holes left by the cartridges.

  6. l2UCTEdjYvClCqG4

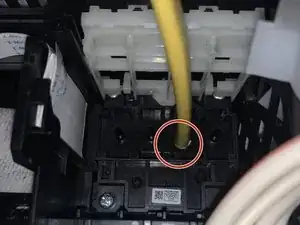

    • Begin to flush the manufacturer's recommended amount of solution through each hole onto the paper towel.

    • If necessary, swap out the paper towel in between flushes to prevent any solution from entering the printer.

  7. PwjJSKNXcGEZpFM4

    • Remove the paper towel from under the printhead.

  8. YTUXNV6YRB1FxjI2
    YTUXNV6YRB1FxjI2
    3oJrZxfYkJ146fp4
    u5EdPb3GuIMKyGgk

    • Reattach each ink cartridge into their original positions.

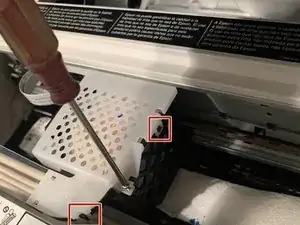

    • Reattach the two printhead cover clips back onto the printhead.

    • Screw the single screw back into place with a Phillips #0 screwdriver.

  9. Q1fZN2B5nZp4FUtv

    • Perform an automatic cleaning to ensure that any ink residue is removed.

    The cleaning solution linked by this article, the seller specifically says "Sorry, this printhead solution cannot be used for Epson ecotank." July 14, 2022.

    drgnrider12 -

    Thank you for your time and efforts

    Richard Goodwin -

Conclusion

Enjoy your clean printhead!
