Introduction
The navigation keys are the hard, directional keys on the front of the phone.
The qwerty keyboard are the soft keys on the front of the phone.
Tools
-
-

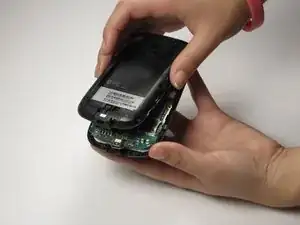

Next, using both thumbs, carefully push the back side of the phone's exterior up, removing it from the main section of the phone.
-
Set this piece aside until you need to reassemble the phone.
-
-
-
Insert thumb and pointer finger into the notch above the battery. Pull the battery away from the rest of the phone and set it aside.
-
-
-
To remove the back casing inside the phone, unscrew the 6 screws that are around the perimeter of the phone.
-
-
-
To remove the navigation keys on the front of the phone, unscrew the four screws circled using a Philips screwdriver.
-

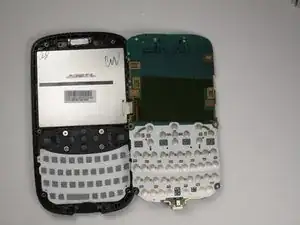

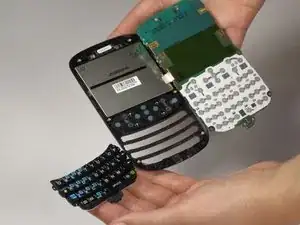

Remove the navigation keys from the front of the phone. They should pop out as a unit.
-
To reassemble your device, follow these instructions in reverse order.
