Introduction
This guide will lead the user through the process of disassembling their smart phone in order to remove the broken speaker. In just a few short, easy to follow steps this goal can be accomplished with little knowledge and only a few basic tools.
-
-
Next, using both thumbs, carefully push the back side of the phone's exterior up, removing it from the main section of the phone.
-
Set this piece aside until you need to reassemble the phone.
-
-
-
Insert thumb and pointer finger into the notch above the battery. Pull the battery away from the rest of the phone and set it aside.
-
-
-

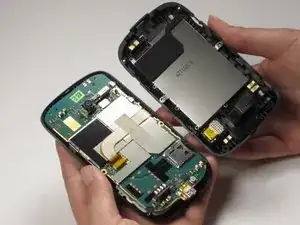

Next, choose the matching tool from your driver kit and remove the six screws found around the perimeter of the phone.
-
-
-

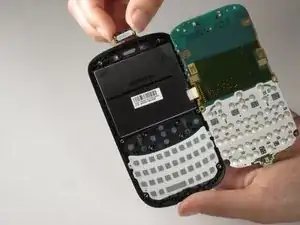

Flip over the motherboard so that the front case is visible. Using a spudger, remove the speaker out of its holding cell.
-
To reassemble your device, follow these instructions in reverse order.
