HP Pavilion dv6000 Hard Drive Replacement

Written By: Ben Hirsch
  • Comments: 2
HP Pavilion dv6000 Hard Drive Replacement

Difficulty

Moderate

Steps

4

Time Required

15 - 20 minutes

Introduction

If your hard drive is not working or you want to add in a larger hard drive, follow this guide.

  1. fBCrRaJJIuAVGMDu
    fBCrRaJJIuAVGMDu
    PPbeSdDmGSbNKFSI

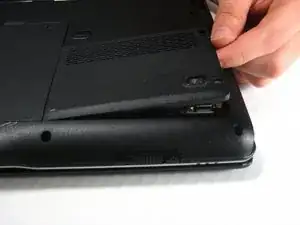

    • Remove the two screws from the hard drive shield and lift it off starting at the right side. The screws will remain in the shield.

  2. RhD6Dtjg5m4BsnMw
    RhD6Dtjg5m4BsnMw
    GBFHEhjKhCIyUGNq

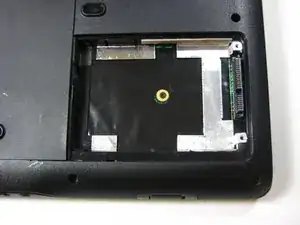

    • Pull the plastic tab attached to the hard drive. The hard drive lifts right out. Pull gently so you don't damage the contacts.

  3. kKAOuFuosolo2fdP
    kKAOuFuosolo2fdP
    lGopWIMFJiTKOxog

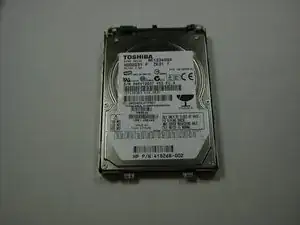

    • Now you have your hard drive out!

  4. guGlWFamDXJQru6q
    guGlWFamDXJQru6q
    22hw2N41cAOGcGPu

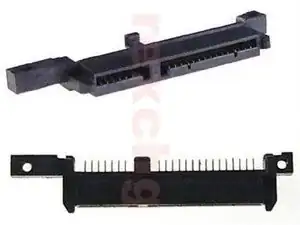

    • Gently pull forward the HP adapter from the top of the hard drive.

    • Insert the adapter onto the new SATA hard drive, to be replaced in the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
