Garmin Vivoactive 3 display Replacement

Written By: Daniel Alexander
  • Comments: 0
Garmin Vivoactive 3 display Replacement

Difficulty

Easy

Steps

4

Time Required

15 - 20 minutes

Introduction

  1. bZGuK3kr5MNkkBDT

    • For the replacement I used:

    • new battery, boiling water, knife, suction cup, plastic wedge, screw driver, double sided tape, t-7000 glue

    • 1. remove the wrist band

    • 2. boil 1L water

  2. bZFaLKlC3ePADGKB
    bZFaLKlC3ePADGKB
    GdWGSvvBNBpBdVXO

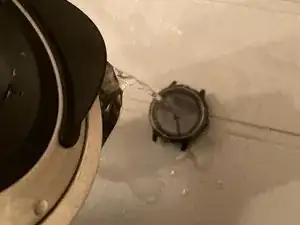

    • If you use water, let the boiling water rest for 60 sec then pour the water over the display

    • Make sure to dry the watch before removing the display!

    • Although hot water was used in this guide, you can always use an iOpener as an alternative

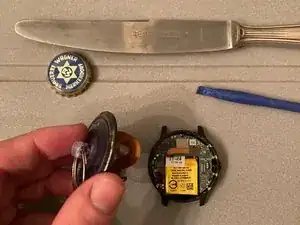

    • To remove the display, a knife was used to separate the display, along with a suction cup

  3. Fp1IeVJkXAhKYaSe
    Fp1IeVJkXAhKYaSe
    3nWjdNx25ry4EIlY

    • Remove the two connected FPCs

    • The FPC's are different connectors, and have been color coded for easy reassembly

    • Make sure to clean off any glue or glue residue left behind.

    • Remove the 3 screws, then lift the PCB

  4. KgAZXMfrJQEY4srV

    • If needed, remove the red marked FPC to increase assembly space

    • Remove the old battery

    • Next, add double sided tape to the new battery. Make sure to connect and place the new battery inside the watch

    • Make sure to use a good electronic adhesive (t-7000) to seal the display again

Conclusion

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
