Introduction
This is the guide to replacing the battery for the Garmin Drive 52 and Traffic.
-
-
Use a T5 Torx screwdriver to remove the four screws in the corners of the backside of the device.
-

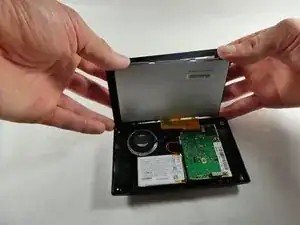

If necessary, use a Jimmy or other pry tool to open the backside of the device.
-
-
-
Use a T5 Torx screwdriver to unscrew the four screws securing the motherboard.
-
Gently detach the wiring from the motherboard and left the motherboard out.
-
Use a nylon spudger to gently lift the battery out.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
