GameSir T4 Pro Sticky Buttons Replacement

Written By: Madison Puckett
  • Comments: 0
GameSir T4 Pro Sticky Buttons Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

This guide will help you repair the sticky buttons on your GameSir Pro T4.

Sticky buttons often happen due to the build-up of dirt in the button's crevices.

  1. EKYDuOuhGH3IVs2m

    • Using the Phillips 1 screwdriver, gently turn the screw to the left (repeat this step until all four screws are taken out).

  2. Z253w1hw1YAOjJxm

    • Use your iFixit opening tool to break the seam of the back of your controller.

    • Be careful when pulling apart, as the charging port wires are connected to both sides of the controller.

  3. jUg1fYhBZi5jeRCv

    • Using the plastic spudger, wiggle the connection out of place.

  4. eFTIEf6Ls2hFPq6f

    • Apply a slow, but consistent pull to the old 600 maH battery.

    • Attach new battery onto the pad

  5. ECKxEXQ4p4EdGgNl
    ECKxEXQ4p4EdGgNl
    pBQuGGlOQOh3VPRt

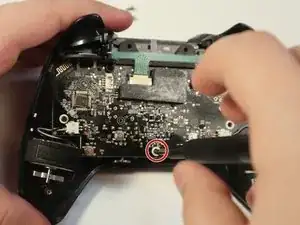

    • Remove the three 5mm screws on the motherboard.

  6. HYMSQQMK5lwPMEM3

    • Disconnect all white connectors from the motherboard.

  7. DlIYDZlKnuV2EC1i

    • Carefully pull the motherboard away to reveal the front panel.

  8. BBFLmFF4IFQ1dSpE
    BBFLmFF4IFQ1dSpE
    aJsuVRniWcUlYBIN

    • Remove the white rubber panel to get access to the buttons.

    • Put a small dab of alcohol on your cotton ball and clean around the area of your sticky button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
