Introduction
This guide is a tare-down of the Fitbit Charge HR and a guide on how to replace the Vibration Motor in Fitbit Charge HR.
-
-
Remove the four 2.9 mm screws from the back of the display using a Torx screwdriver.
-
Remove the back cover from the device.
-
-
-
Remove the two 2.9 mm Torx screws holding the circuit board in place.
-

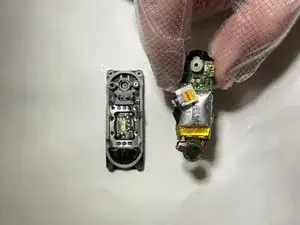

Carefully pry the board out using an opening tool.
-
-
-
Desolder the two soldering points on the motherboard that are connected to the vibration motor.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
