Introduction
Follow along with our five step guide to replace the switch on your Equity Alarm clock. This simple repair requires a screwdriver and soldering iron.
-
-

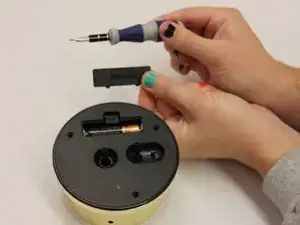

Use Phillips #1 screwdriver to remove the small screw located above the alarm switch.
-
Remove the small screw located below the alarm switch.
-
-
-
Place the end of the soldering iron to the end of the wire on the copper cylinder to detach the wire.
-
To replace the alarm switch, attach one end of new alarm switch wire to the copper cylinder.
-
Use a Phillips #1 screwdriver to reinstall the switch screws.
-
Follow steps in reverse order to assemble the clock.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
