Dexter Corded Circular Saw - 1300CIS2-185.5 Carbon Replacement

Written By: Céline Chemineau
  • Comments: 1
Dexter Corded Circular Saw - 1300CIS2-185.5 Carbon Replacement

Difficulty

Very easy

Steps

6

Time Required

1 minute

Introduction

This tutorial shows you the change of only one carbon, to change the second you just have to follow the same method.

  1. FTQBOOHVOEllJsNH

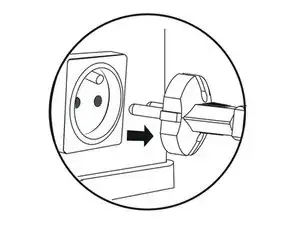

    • Before you begin, remember to disconnect the mains plug.

  2. 14CZcKYFLTXZBZgb
    14CZcKYFLTXZBZgb
    NdGpsZrMAiF3iUVU

    • Remove the dust extraction nozzle, blade and edge guide.

    • Refer to the instructions for the device to remove them.

  3. IQCoTJuwtKfIJuue

    • Unscrew the screw to access the brushes.

  4. Take the carbons out of their housing.

    • Take the carbons out of their housing.

  5. h2xkPIgOiivvwAGj

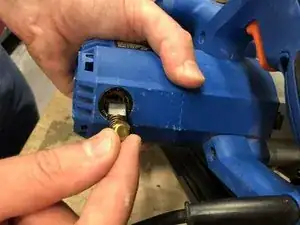

    • Replace the new carbon brushes in their housing.

    • When putting the new carbon back, check that the legs of the carbons are well located in the rectangles.

  6. 3JmboSnjF22vPrBL
    3JmboSnjF22vPrBL
    JHsTwVNllcFmAnJu

    • Replace the blade, edge guide, and extraction bit on the saw.

    Bonjour qu elle sont les charbon de remplacement car impossible d avoir une référence ou autre je dois changer les miens merci de votre compréhension

    Alban Francisco -

Conclusion

you will have replace the carbon by the end of the guide
