Dell Latitude E6530 Fan & Heatsink Replacement

Written By: Jonathan M.
  • Comments: 1
Dell Latitude E6530 Fan & Heatsink Replacement

Difficulty

Easy

Steps

9

Time Required

2 - 10 minutes

Introduction

This guide will help you replace the fan and heatsink in your Latitude E6530 laptop. They both have to be replaced as the fan and heatsink are one assembly.

  1. Qdycv3VFcdIAnWol

    • Flip over the laptop.

  2. PqJSHGEOZe1H5FpW

    • Pull back the 2 battery tabs which are to the left and the right of the battery.

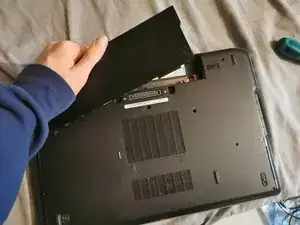

  3. SDPcJJHTBjWxR1RH

    • Remove the battery from the laptop.

  4. r6kwQNnGcjdvvNwD

    • Remove the 4 Philips #0 screws from the laptop.

  5. KRoL4ZDrjibS3Jqb

    • Remove the bottom cover from the laptop.

  6. cknmLv66KSuuWP5N

    • Remove the fan connector.

  7. iAaEHGWLLNoRALKA

    • Remove the 4 Philips #1 screws on the heatsink.

    This doesn't match the fan unit in my E6530. Mine has two heat pipes

    Dean Wilson -

  8. VIPKtIaiSFJNfYVo

    • Remove the Fan+Heatsink assembly.

  9. NJrcTNQGRwqjCALw
    NJrcTNQGRwqjCALw
    ZIVY4SpfV4oN5JyO

    • Use a paper towel or alcohol swab to clean the thermal paste from the heatsink & CPU.

Conclusion

To reassemble your device, follow these instructions in reverse order. Remember to apply the thermal paste on the CPU!
