Dell Latitude E6530 CPU Replacement

Written By: Jonathan M.
  • Comments: 0
Dell Latitude E6530 CPU Replacement

Difficulty

Easy

Steps

11

Time Required

3 - 10 minutes

Introduction

This guide will show how to replace the Socket G2 CPU in your Latitude E6530 laptop.

  1. ibRJlvjtyMksbJJe

    • Flip over the laptop.

  2. IMRM6WGVQOLNH4S4

    • Pull back the 2 battery tabs which are to the left and the right of the battery.

  3. ZVUDIJFH4v6eATIR

    • Remove the battery from the laptop.

  4. 2hKFSyMj6ZIbJSjU

    • Remove the 4 Philips #0 screws from the laptop.

  5. BIh5wSYYoVbNjiYB

    • Remove the bottom cover from the laptop.

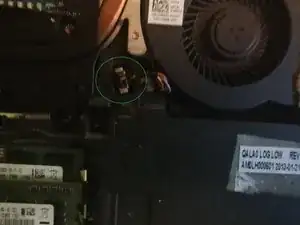

  6. QZHonVHFDpXjCV5o

    • Remove the fan connector.

  7. lLSxFkSHLIVOsNcX

    • Remove the 4 Philips #1 screws on the heatsink.

  8. YMKPM6YXCDyTNgRc

    • Remove the Fan+Heatsink assembly.

  9. hWDnUmYyDSyeDsVS
    hWDnUmYyDSyeDsVS
    2PAJApTL6EkjMMAV

    • Use a paper towel or alcohol swab to clean the thermal paste from the heatsink & CPU.

  10. PrG33r32ARpwWY1F
    PrG33r32ARpwWY1F
    NZ2HjeP6EbNZQ4oQ

    • Use a flathead screwdriver and turn the CPU lock counter-clockwise.

    • Remember to turn the CPU Lock clockwise when you install the new CPU! If you don't do this, the computer won't boot up.

  11. sSQEDMqA3sAQ4TaR

    • Carefully remove the CPU.

    • Be VERY CAREFUL to NOT bend ANY pins on the CPU.

Conclusion

To reassemble your device, follow these instructions in reverse order. Remember to reapply the thermal paste!
