Introduction
If you are trying to replace the motherboard for the Dell Alienware 15 R3 this is a step by step guide to help you.
-
-
Flip the laptop over so that the backside is facing up.
-
Use a Phillips #00 screwdriver to remove the six 13.0 mm screws from the sides of the back case.
-
Use a Phillips #00 screwdriver to remove one 5.0 mm screw from the back of the laptop.
-
-
-
Use the opening tool to pry the back case from the computer.
-
Use the opening tool and work your way around the perimeter of the back case to gently release the clips.
-
Lift the back case off of the laptop.
-
-
-
Use a Phillips #00 screwdriver to remove nine screws from the chassis.
-
Use a spudger or opening tool to remove the chassis and reveal the battery, fan, motherboard, and other components.
-
-
-
Use a Phillips #00 screwdriver to remove the eleven screws connecting the fan to the motherboard.
-
-
-

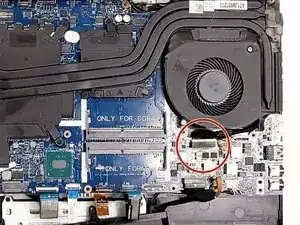

Detach the ribbon cable connecting the heat sink to the motherboard.
-
Pull the heat sink off of the fan.
-
-
-
Use a Phillips #00 screwdriver to remove the eight screws from the motherboard.
-
Detach the remaining ribbon cables from the motherboard.
-
Remove the motherboard from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
