Compaq Evo N1000v Fan Replacement

Written By: Alex Hernandez
  • Comments: 2
Compaq Evo N1000v Fan Replacement

Difficulty

Moderate

Steps

29

Time Required

No estimate

Introduction

A guide on how to remove the Fan.

  1. IVp4JMGehWTGhukw

    • Turn the laptop bottom side up with the rear panel facing forward.

  2. 26AHyZ1XSHKnZYXF

    • Remove the two T8 Torx screws that secure the LED cover to the base enclosure.

  3. UXcadkOxJwyrQcPb

    • Turn the laptop top side up with the front facing forward. Open the screen.

  4. YTd2GKBUeVY3eFqc

    • Locate the F1 and F2 keys near the top left corner of the keyboard.

  5. ikVXSlZLmHrBqjhT

    • While holding the F1 and F2 keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

  6. QOjYJBvPVIjoO3RJ

    • Locate the Pause and Scroll keys near the top right corner of the keyboard.

  7. e1JGuqmvftoRZdBG

    • While holding the Pause and Scroll keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

  8. imX4T24lhWwLlnSM
    imX4T24lhWwLlnSM
    3P1QWubE5kGIHTcC

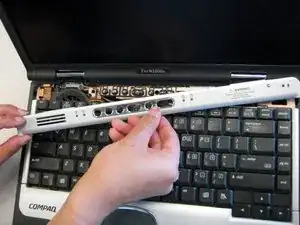

    • Insert a spudger between the F7 and F8 keys. Lift up to remove the LED cover.

  9. 1FM6LFQ5cZehHxCE

    • Lift the back edge of the keyboard and pull towards the screen.

  10. ZxNSGAtyuYFKaXEf

    • Pull the cable and lift up to release.

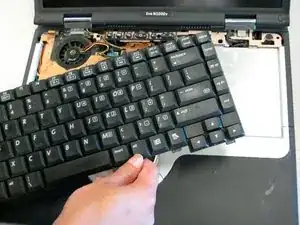

  11. XAn6bZu5VxKJSFcn

    • Remove the keyboard.

  12. rBv2sx4hKqGtnZbX

    • Locate the fan near the top left corner. It has three colored wires: yellow, red, and black.

    • Disconnect the cable connecting the fan to the system board.

  13. OLgSLcT1SuJvEgWT

    • Locate and remove the four screws in the copper plate.

  14. ow1IEixJxdMiNOVA

    • Remove the heat spreader by pulling the whole assembly up out of the computer.

  15. fnSYUS5I3iBBLMG4

    • Flip the computer bottom side up with the rear facing forward.

  16. OlareLOhdkyG132N

    • Remove the six screws shown in picture.

  17. q2sOKmiLL1WPgBMI

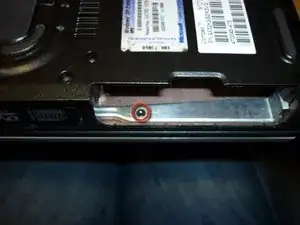

    • Remove battery and then remove screw in metal support on case edge

    • Flip the computer top side up with the front facing you.

  18. i1i3YqCuoCOkHSxe

    • Lift up the palm rest from the front edge and swing it towards the screen.

  19. R4qgLUuoixJqGRGM

    • Locate the first connector. Disconnect by firmly pulling up.

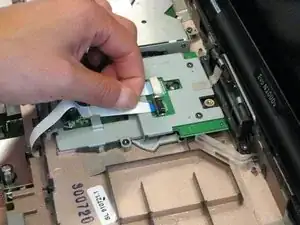

  20. o2AdYEgQRgBQQSIL

    • Locate the second connector. Remove by firmly pulling up.

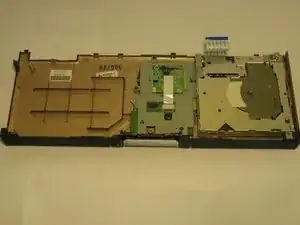

  21. IDGY2SNmW4UAPY2v

    • Remove the palm rest.

  22. wAabE4DcjXPYZS6s

    • Turn the base bottom side up.

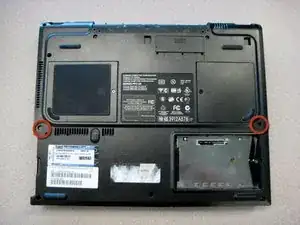

  23. edbCtJs2SrvEZaPS

    • Remove the two TM 2.5mm x 8.0mm screws that secure the top cover to the base.

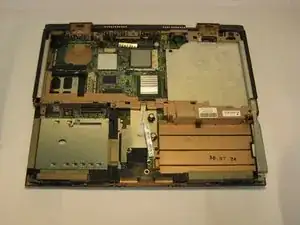

  24. tddjdIQCfVcRHHHM

    • Turn the base top side up with the front facing forward.

  25. SITkYwfroI2vrhK1

    • Remove the three TM 2.5 mm x 5.0 mm screws that secure the top cover to the base.

  26. fXKg5nchPPBK4BMc

    • Lift the top cover straight up about one inch, then slide forward until the microphone cable is exposed.

    • Disconnect the microphone cable from the system board.

  27. 2jBWSvtniFEsGXUf

    • Remove the top cover from the base.

  28. 5ZUJPsh5ADxCNOrj

    • Disconnect the fan cable from the system board.

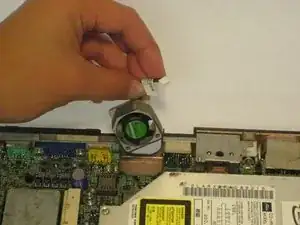

  29. eOTQufouB5OmIEEK

    • Remove the fan from the base.

Conclusion

To reassemble your device, follow these instructions in reverse order.
