CR-10S PRO Y Axis Linear Rail Kit Installation

Written By: AJ Pereira
  • Comments: 0
CR-10S PRO Y Axis Linear Rail Kit Installation

Difficulty

Moderate

Steps

9

Time Required

1 hour

Introduction

  1. FEaMVvOLog2ZQsEn

    • Remove Bed leveling knobs

    • Be careful when lifting the bed off the Y Carriage. The springs may fall when lifting the bed up.

    • Lift bed and set to the back left side of the printer

  2. t4DRBY5bDkCZM3KG
    t4DRBY5bDkCZM3KG
    ZXMxYkAackYTtjN2
    wPEnPGIytKxNHHgr

    • Note: uses the stock CR10S Pro Y carriage with Vslot wheels assembly to keep the rails aligned while replacing the frame bolts

    • Remove with M5X30 BHCS one at a time

    • Replace with M5X30 BHCS each M5x30 SHCS is removed

  3. Y2DphFZghZKALL2F
    Y2DphFZghZKALL2F
    lyjRLOAfWOvB2fqB

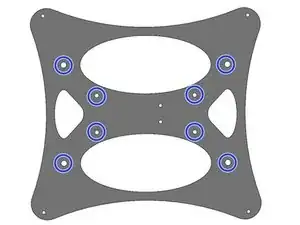

    • Remove all Vslot wheels and bolts

    • Picture 2 enstop Trigger install

    • M5x35 SHCS

    • 3x Stock Vslot wheel spacers

    • M5 Nylon Ring Lock Nut

  4. eHXyPMZww2AtGhDi

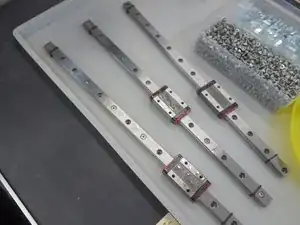

    • Remove from packaging

    • Note, do not touch the rail directly with your hands.

    • Wipe down rail with a lint free cloth

    • Add grease to the grease port on each side of the rail

  5. GAhSPWSTJRH5htX1
    GAhSPWSTJRH5htX1
    nQDMopC2Z1pYBhgG

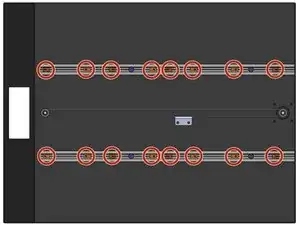

    • Pre-insert Spring loaded and use an Allen wrench or screwdriver to help align

    • M3 Spring loaded T-nut

    • Use the circled Rail mounting positions

    • 16x M3x8 SHCS

  6. EIV1emqF4gSIDm5K
    EIV1emqF4gSIDm5K
    IG21DbBUw4ZB3tuo

    • Tighten the screws evenly in an X shape

    • 4x Adapter Plate

    • 16x M3x6 FHCS

  7. YHXqT1RVcxZqwqOE
    YHXqT1RVcxZqwqOE
    y6GMsKmxXCLNKDX2
    btm2FOaUTKABRcgT

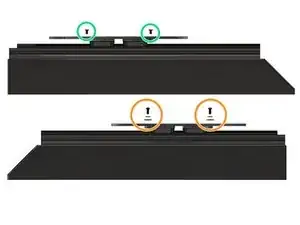

    • Belt mounting holes goes on the right side

    • Left side screws

    • Some early kits are drilled and taped for M5 Screws. The M4x8 FHCS is substituted for a M5x10 FHCS and the M4x10 BHCS substituted for M5x10 BHCS.

    • 2x M4x8 FHCS

    • Belt mounting holes goes on the right side of the Carriage plate

    • Right screw stack order

    • M4x10 BHCS - M4 washer - M4 Large OD washer

    • Tightened the left side screws first

  8. WnUdcUGhjmItcuXR
    WnUdcUGhjmItcuXR
    5LuMcSxng4UNUZCX
    boOe1pYilmYXdnWS

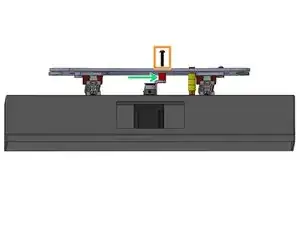

    • Belt Bracket Spacer

    • 2x M4x20 SHCS

  9. oDM14NRTSkx4VFmG
    oDM14NRTSkx4VFmG
    1f1wbQoPdvKntMgk

    • M5*10 BHCS

    • Acrylic stopper
