CHI Spin N Curl Rotating Curler Temperature Control Switch Replacement

Written By: Annalise White
  • Comments: 0
CHI Spin N Curl Rotating Curler Temperature Control Switch Replacement

Difficulty

Moderate

Steps

6

Time Required

20 - 40 minutes

Introduction

If your CHI Spin N Curl Rotating Curler is not setting the proper temperature, follow this guide to replace the temperature control switch.

  1. QQAcNGQWaHpFd1Lu

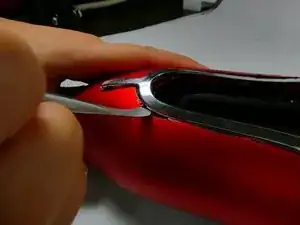

    • Use a metal spudger to pry off the silver, shiny trim.

  2. WXZIAikakUXuCYLf

    • Remove inner black housing of the CHI Spin N Curl using the metal spudger to pop it out.

  3. FmsguqA3EhGWYARm
    FmsguqA3EhGWYARm
    Rn4xAQ3Be5YLybSW

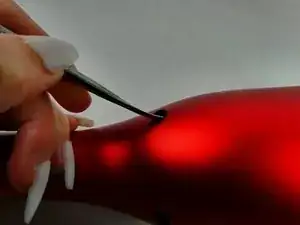

    • Use a 2 mm flathead to remove the two screws.

  4. kRANKNE1oydI6yAE
    kRANKNE1oydI6yAE
    vcPRTjNXG1CQKrly

    • Use a metal spudger to pry open the seams of the device.

  5. QQBEivNkOQAGjYnW
    QQBEivNkOQAGjYnW
    pNw2qTyE6K1QwLGP
    1erXxJjucZYjIgyV

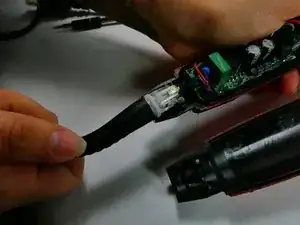

    • Toward the bottom of the device, grab the swivel power cord.

    • Gently pull the power cord to detach it from the CHI Spin N Curl

    • Replace the faulty cord when the original cord has been removed.

  6. TQrS3LPFaQXXmEGO

    • Use a Phillips #00 screwdriver to remove the screws on both sides of the temperature control switch.

    • Pop out the control switch.

Conclusion

To reassemble your device, follow these instructions in reverse order.
