Introduction
Tools
-
-
With a Phillips 0-bit screwdriver, remove six 13.5 mm screws located on the edge of the panel.
-
With a Phillips 0-bit screwdriver, remove five 6.4 mm screws located on the edge and center of the panel.
-
-
-

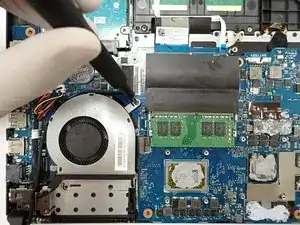

With a Phillips 0-bit screwdriver, remove eight 5.0 mm screws on the silver brackets
-
With a Phillips 0-bit screwdriver, remove two 5.0 mm screws holding the edge of the fans in place
-
-
-

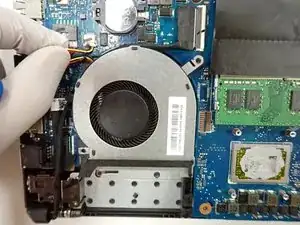

Disconnect two power cables connecting fans to the motherboard.
-
Once all cables and screws are removed, carefully lift up and remove the fans and heat sink
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
