Introduction
If your keyboard is not working this guide will be very useful. There is not much that can go wrong with this but as always be wary when unplugging wires as to avoid tearing.
Parts
-
-

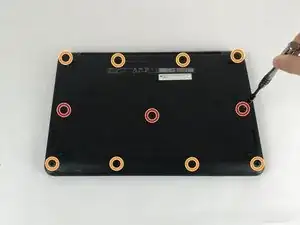

Remove the eight 9.0 mm Philips screws along the perimeter of the case.
-
Remove the three 6.0 mm Philips screws from the center of the case.
-
-
-

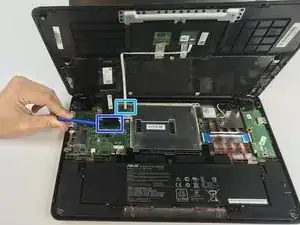

Use plastic opening tool to pry open clip holding mouse pad wires to the circuit board.
-
Use plastic opening tool to pry open clip holding keyboard flat black wire
-
Use plastic opening tool to pry open clip holding keyboard thiner white wire
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
