Introduction
In this Guide you will learn to disassemble the Aorus X7 v2 in order to replace the fans.
-
-
Flip Laptop over
-

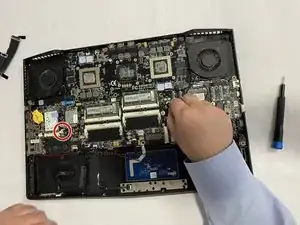

Unscrew the 12 screws on the bottom
-
Take off bottom cover
-
Remove the 12 screws on the heat stink
-
-
-
Unscrew the six screws from the left and right fans
-
Locate the connection plug for the fan to motherboard
-
Remove the left plug fan
-
-
-
Remove the right fan plug
-
Lift up the left and right fans
-
Move fans to the side to add new fans in
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
