Introduction
Acer's Predator 17.3" is a high-end gaming laptop with a hefty spec sheet and an equally hefty price tag. Luckily, it has a modular design and is easy to disassemble, earning an 8 on our repairability scale.
-
-

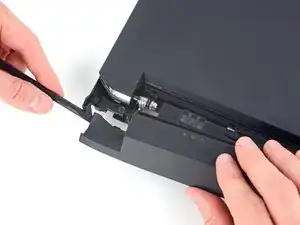

A single latch secures the optical drive—no tools are required to remove it.
-

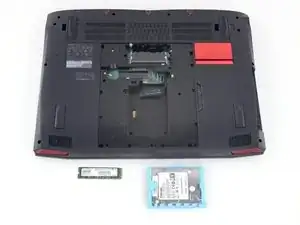

Two screws release the cover for the hard drive, M.2 SSD, and two of the four RAM slots.
-
The hard drive is secured by a rubber casing that uses friction to hold it in place.
-
One screw secures the SSD.
-
-
-

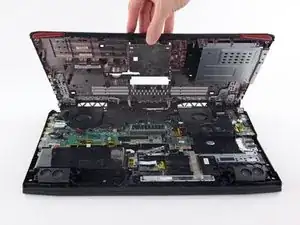

Twenty Phillips screws and a lot of clips secure the rear case to the computer. Removing it takes some patience, but gives unfettered access to the internals.
-
Internal view of the computer.
-
-
-

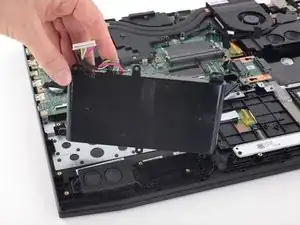

The battery is secured by six Phillips screws. A spudger can be used to disconnect the battery.
-
The wireless card is secured by one Phillips screw and slides into a PCI slot.
-
Two screws secure each primary speaker, and their cables route to a single connector on the motherboard.
-
-
-
Beneath this piece of tape, a standard CMOS battery can be pried out with a spudger.
-

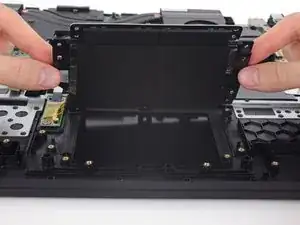

Seven Phillips screws secure the trackpad and button assembly.
-

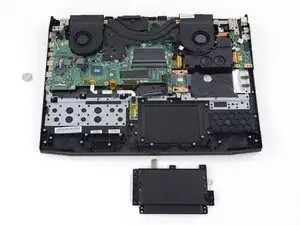

Layout shot of the removed CMOS battery and trackpad.
-
-
-
The subwoofer is modular and lifts out after detangling a few cables. The three screws securing it were among the twenty removed from the bottom case.
-
The heat sink screw positions are numbered for correct/even pressure during installation.
-
Fans are simply taped to the heat sink, and can be removed individually or as an assembly.
-
-
-
The display hinge screws must be removed and the hinges flipped up to free the motherboard or I/O board (both of which are also secured by additional screws).
-
One display cable connector is hidden on the underside of the motherboard, but we discovered later that it's easy to access with the hinge trim cover removed.
-

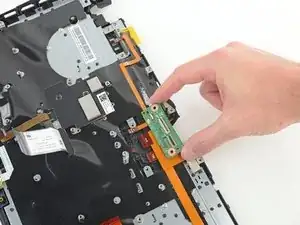

Besides the motherboard and I/O board, there are breakout boards for the power button, macro buttons, trackpad, and SSD.
-
The power button board lies beneath the motherboard—modular, but troublesome to access.
-
-
-
Factory installed RAM is on the underside of the motherboard, and requires a bit of disassembly to access.
-
The front and back motherboard and I/O board shots.
-
-
-
Prying up the clips around the perimeter of the display hinge cover frees it from the chassis.
-

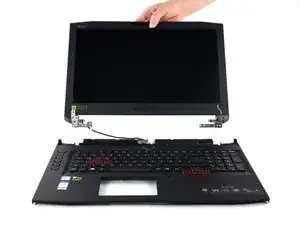

Now the display assembly comes free.
-

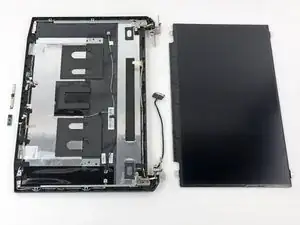

Disassembling the display involves using a pick to separate clips and a small amount of adhesive.
-
-
-
Four screws secure the display; once they're free, it lifts out easily.
-
The web cam and accessory boards are lightly adhered in place along the top bezel.
-
-
-
The Acer Predator 17.3" earns an 8 out of 10 on our repairability scale (10 is the easiest to repair):
-
A single latch releases the optical drive—no tools required.
-
A single panel gives access to the SSD, HDD, and two RAM slots.
-
Phillips screws are used throughout, with minimal use of glue.
-
Removing the bottom case takes a little patience, but gives access to the battery, wi-fi card, CMOS battery, touchpad, speakers, and fans.
-
The keyboard is not readily serviceable.
-
Manufacturer does not provide user-accessible repair documentation.
-
