Acer Aspire A515-51G Battery Replacement

Written By: Alex Diaz-Kokaisl
  • Comments: 0
Acer Aspire A515-51G Battery Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 30 minutes

Introduction

Use this guide to replace the battery in your Acer Aspire A515-51G Laptop.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. cHQR6tBWPhWCiUCG
    cHQR6tBWPhWCiUCG
    6vQpbUHlFwB2SJsi

    • Use a Phillips screwdriver to remove the 20 6.6 mm screws securing the case.

  2. YREbvjXsVMFBWGSW
    YREbvjXsVMFBWGSW
    VWLY1KYCBS4IahrA

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. jsQY224l4sZ66LGC
    jsQY224l4sZ66LGC
    FcZnMDGpwA6UuYVV
    jDUTrItB5WDKTPqH

    • Slide the pick along the front edge to release the clips securing the lower case.

  4. rBgE2JnEIjAUPyt6
    rBgE2JnEIjAUPyt6
    c2JEMrlBvHnf6XmF

    • Continue sliding the opening pick along the perimeter of the lower case to release the remaining clips.

  5. ZGfCJOMA2PZWweCu
    ZGfCJOMA2PZWweCu
    MTcjjR1NTCyUIWmZ
    HAQZkwbHuHZAdaEX

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  6. lddQBZNAPxxFPwAq
    lddQBZNAPxxFPwAq
    CAb5FdVx2aUwlNCR

    • Use the pointed end of a spudger to push each side of the battery connector until it comes out of the socket.

  7. pNaVVW3tDwFjixJg
    pNaVVW3tDwFjixJg
    fTLKviQO42W6E6WV

    • Use tweezers, or your fingers, to peel back the tape connecting the battery to the motherboard.

  8. FWtVYnQMBDVNXXd1
    FWtVYnQMBDVNXXd1
    qOEDEqNMXYNIQrRd

    • Use a Phillips screwdriver to remove the two 4.5 mm-long screws securing the battery.

  9. vcBB2ODpYnjmkJW1
    vcBB2ODpYnjmkJW1
    Eud5P2Fe43DQgvVP
    Q3j2UPaiFNVtWJwD

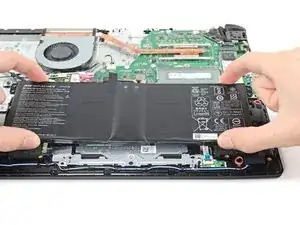

    • Pull the battery towards the top of the laptop to release its plastic clips.

    • Remove the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
