Introduction
This is a guide to replace the RAM memory card(s) from an ACER Aspire V5 laptop.
Tools
Parts
-
-
Completely power off the device before removing the ram.
-

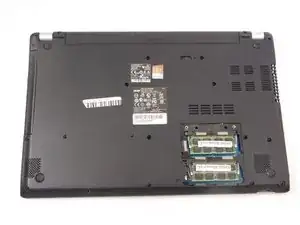

Turn the device to display the back cover and remove the two Phillips #0 screws.
-
-
-

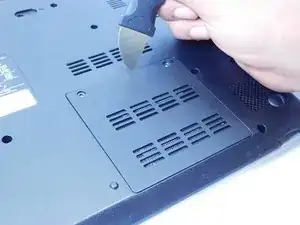

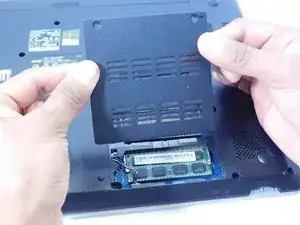

With the screws removed, utilize a jimmy tool to prime open the back cover. Once the cover has been lifted, remove it and set it aside.
-
-
-

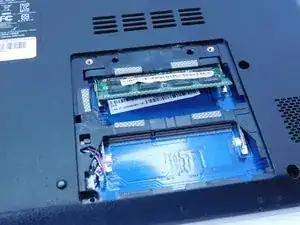

With two fingers push the laches holding the DIMM to the sides.
-
The DIMM will tilt up once released from the slot.
-

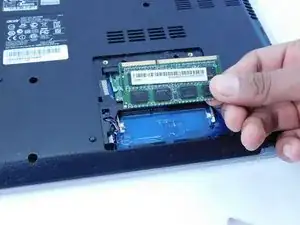

Firmly secure the DIMM and remove it.
-
-
-

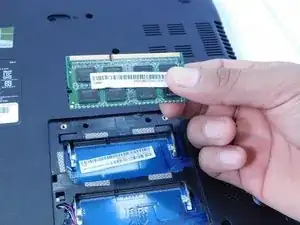

Insert replacement DIMM into the slot
-
Once inserted, push the DIMM down gently until it snaps into place.
-
Conclusion
To reassemble your device, follow these instructions in reverse order with new RAM cards.
