Starlink Rectangle Dish Teardown
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background Information

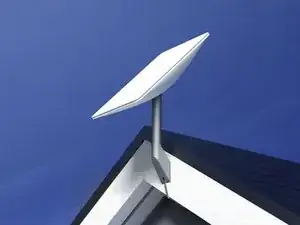

Starlink is a satellite internet access service operated by the SpaceX company. As of March 2022 the company offers 2 different model of dish and router combinations. Users have the option of choosing between either a round dish, or a rectangular dish for use.
Tech Specs
Satellite Dish
- Diameter/Dimensions: 23.2 in, 19 in x 12 in
- Weight: 7.3 kg, 4.2 kg
- Mast Diameter: 1.4 in, 1.3 in
- Operating Temperature: -22°F to +122°F, -22°F to +122°F
- Outdoor Use Rating: IP54
Networking
- Wireless LAN Standard: IEEE 802.11a/b/g/n/ac standards
- Dual Band: 2.4 GHz and 5 GHz
- MU-MIMO Technology: 2x2, 3x3
- Security: WPA2 and WPA3
- Operating Temperature: +32°F to +86°F, -22°F to +122°F
- Water Resistance: Indoor use, IP54 Rated
- Ethernet: 1 x Ethernet port, Ethernet adapter
Power Supply
- Input: 100-240 VAC 50/60 Hz, 2.5A Max
Cables
- Dish to Router: 100 ft, 75 ft
- Power Cable: 6.5 ft, 6 ft
Base
- Dimensions
- Length: 11 in, 22 in
- Height: 4 in, 4.75 in
Box Dimensions
- Weight: 13.6 kg, 8.5 kg
- Dimensions: 33 in x 26 in x 9 in, 23.5 in x 14 in x 10.6 in
